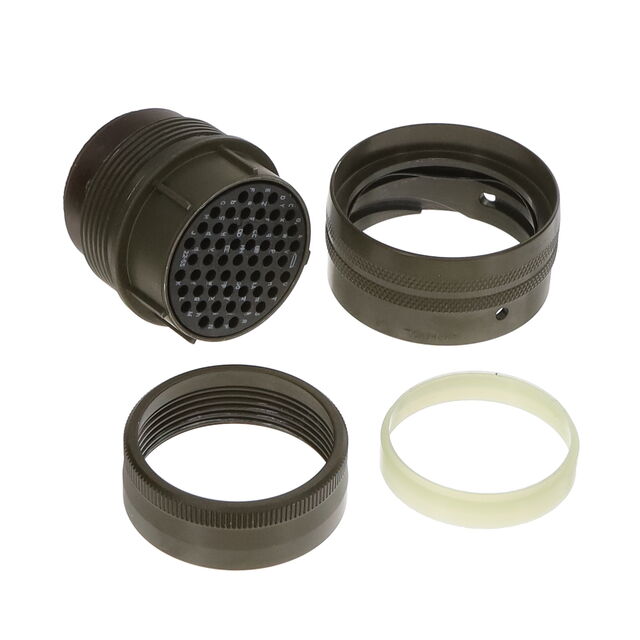

MS3126E22-55S(LC)
ActiveAmphenol Industrial Operations
PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3126E22-55S(LC)
ActiveAmphenol Industrial Operations
PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126E22-55S(LC) | MS3126E22 Series |
|---|---|---|
| - | - | |
| Applications | - | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | - | Olive Drab |
| Connector Type | Plug Housing | Plug, Male Pins, Plug Housing |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Size | 20 | 20 |
| Contact Type | Crimp | Crimp |
| Current Rating (Amps) | - | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Backshell, Coupling Nut |
| Grade | Military | Military |
| Housing Color | Olive Drab | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 55 positions | 55 positions |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | X, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 55 | 55 |
| Shell Size - Insert [Min] | 22 | 22 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Type | For Female Sockets | For Female Sockets |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.64 | |
| 10 | $ 106.12 | |||
| 25 | $ 102.04 | |||
| 50 | $ 98.63 | |||
| 100 | $ 93.19 | |||
MS3126E22 Series
PLUG
| Part | Color | Mounting Type | Qualification | Ingress Protection | Contact Finish - Mating | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Grade | Number of Positions | Voltage Rating | Fastening Type | Orientation | Contact Material | Shell Finish | Applications | Backshell Material, Plating | Connector Type | Features | Termination | Shielding | Primary Material | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Type | Contact Shape | Contact Type | Contact Size | Housing Color | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126E22-21P(LC) | ||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E22-55PX | Olive Drab | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Environment Resistant | Gold | Neoprene | -55 °C | 125 °C | Aluminum | Military | 55 positions | 600 VAC | Bayonet Lock | X | Copper Alloy | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Male Pins, Plug | Backshell | Crimp | Unshielded | Metal | 7.5 A | 55 | 22 | ||||||
Amphenol Industrial Operations MS3126E22-55S(LC) | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Environment Resistant | Neoprene | -55 °C | 125 °C | Aluminum | Military | 55 positions | Bayonet Lock | N | Chromate over Cadmium | Plug Housing | Backshell, Coupling Nut | Unshielded | Metal | 55 | 22 | For Female Sockets | Circular | Crimp | 20 | Olive Drab | Contacts Not Included |
Description
General part information
MS3126E22 Series
55 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
