GM1HD55200A
ObsoleteSHARP/Socle Technology

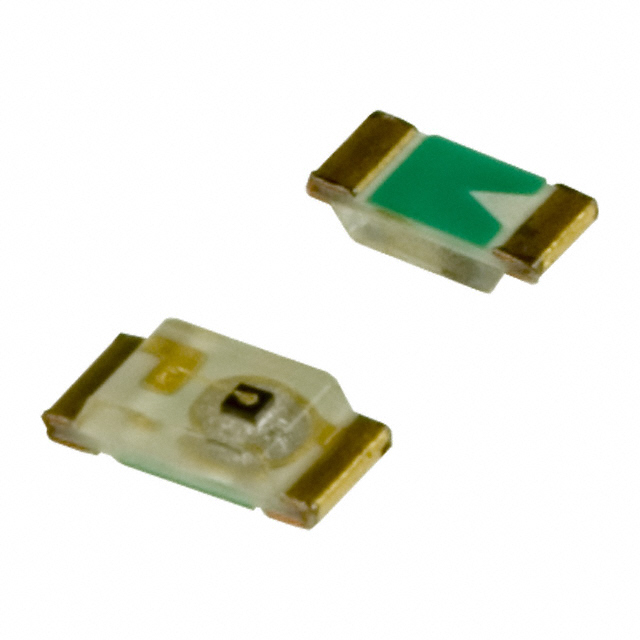

LED RED 635NM CLR LENS 1608
GM1HD55200A
ObsoleteSHARP/Socle Technology
LED RED 635NM CLR LENS 1608
Description
General part information
GM1HD55200A
Red 635nm LED Indication - Discrete 2.0V 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | GM1HD55200A |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) | 0.65 mm |
| Lens Length | 1.2 mm |
| Lens Style | Rectangle |
| Lens Width | 0.8 mm |
| Millicandela Rating | 12.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 1608 |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle | 160 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 635 nm |
| Wavelength - Peak | 635 nm |
