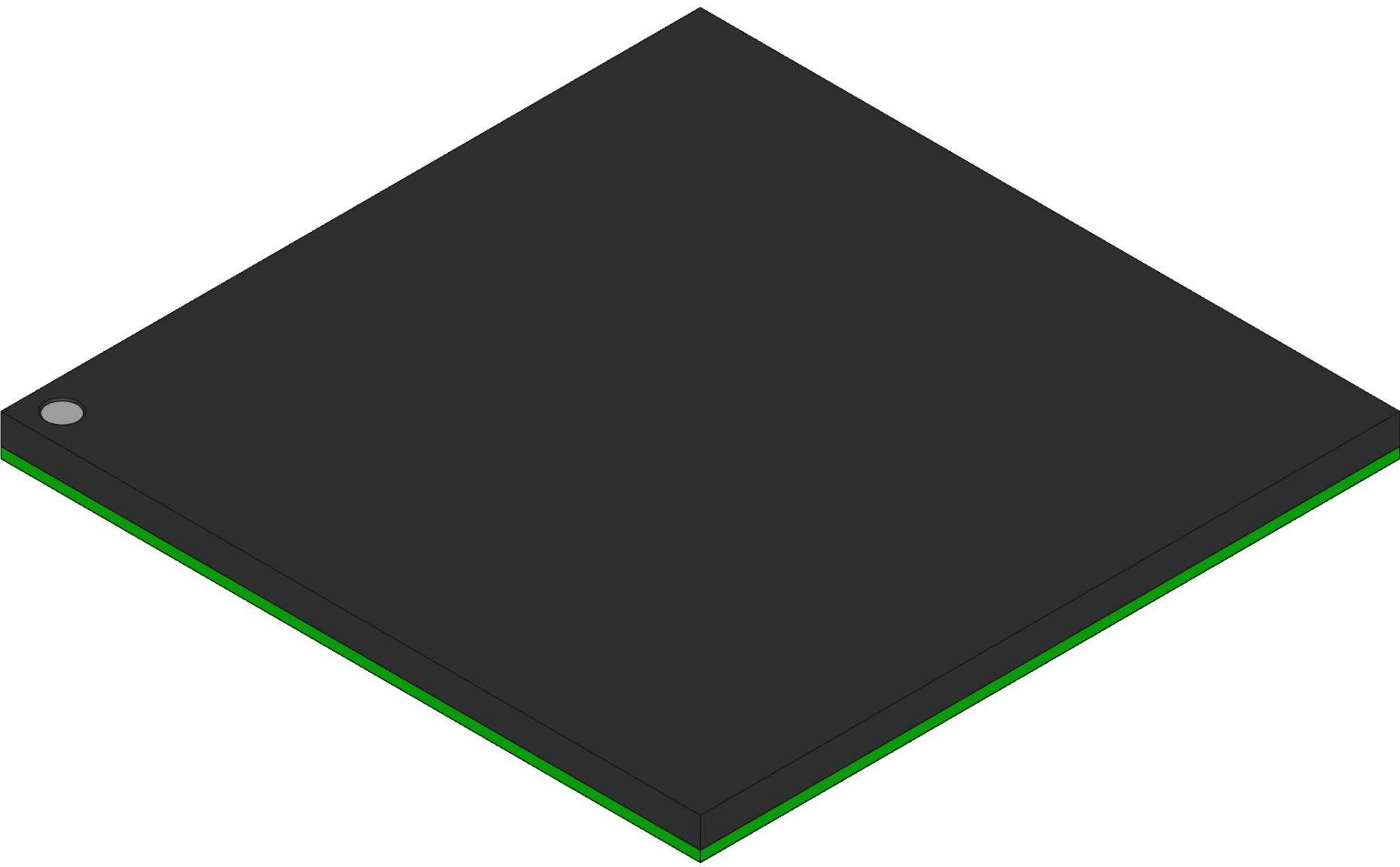

LFECP15E-3FN256C
ObsoleteLattice Semiconductor Corporation
FPGA LATTICEECP FAMILY 15400 CELLS 340MHZ 130NM TECHNOLOGY 1.2V 256-PIN FBGA
LFECP15E-3FN256C
ObsoleteLattice Semiconductor Corporation
FPGA LATTICEECP FAMILY 15400 CELLS 340MHZ 130NM TECHNOLOGY 1.2V 256-PIN FBGA
Description
General part information
LFECP15E-3FN256C
FPGA LATTICEECP FAMILY 15400 CELLS 340MHZ 130NM TECHNOLOGY 1.2V 256-PIN FBGA
Technical Specifications
Parameters and characteristics for this part
| Specification | LFECP15E-3FN256C |
|---|---|
| Mounting Type | Surface Mount |
| Number of I/O | 195 |
| Number of Logic Elements/Cells | 15400 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 256-BGA |
| Package Length | 17 mm |
| Package Name | 256-FPBGA |
| Package Width | 17 mm |
| Total RAM Bits | 358400 bits |
| Voltage - Supply (Maximum) | 1.26 V |
| Voltage - Supply (Minimum) | 1.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
