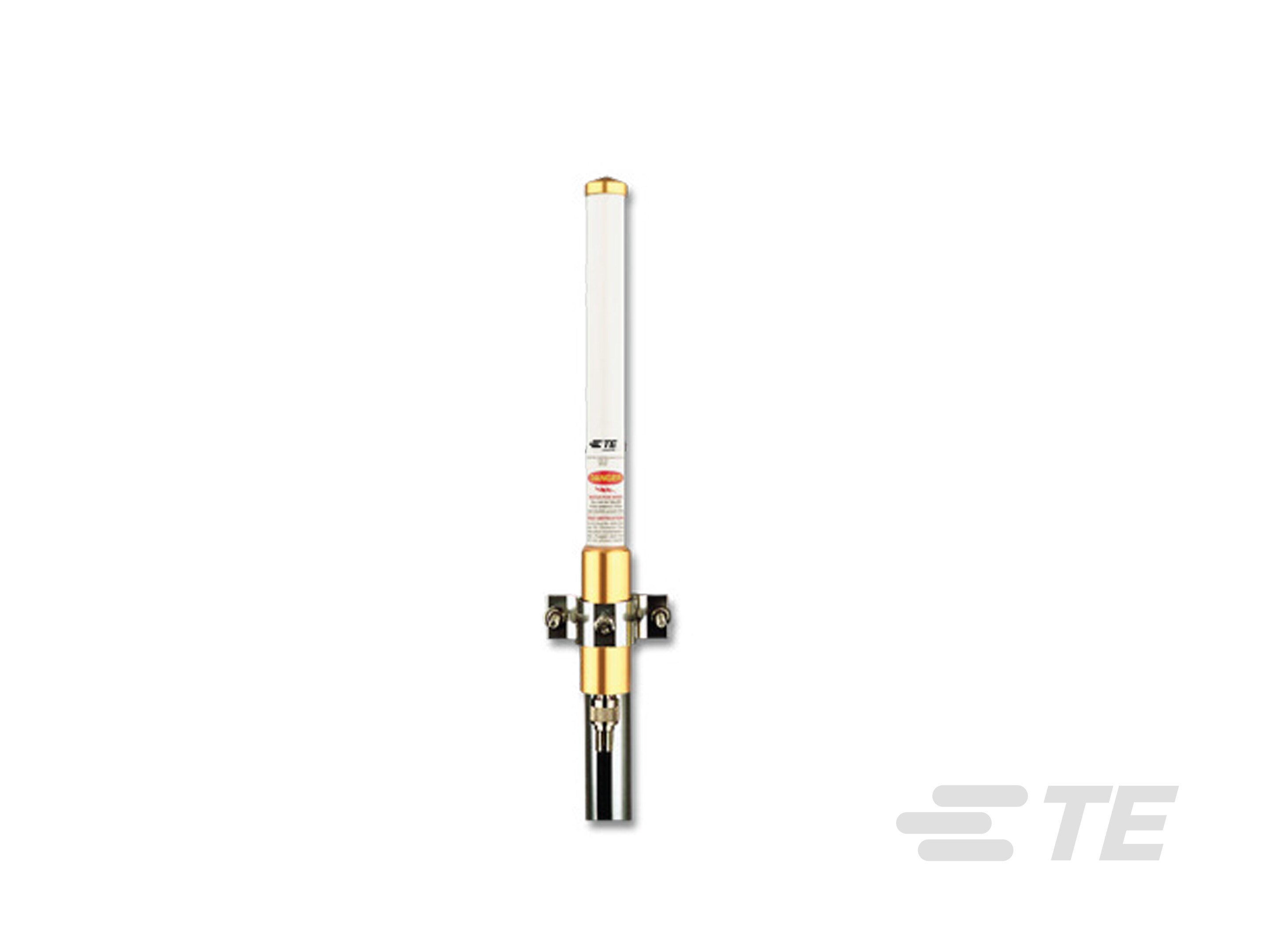

OMNI,FG,MULTI BAND ANT-FG16397

FG16397

Active
TE Connectivity AMP Connectors

RF ANT 850MHZ/900MHZ WHIP STR N

Find alt
OMNI,FG,MULTI BAND ANT-FG16397

FG16397

Active
TE Connectivity AMP Connectors

RF ANT 850MHZ/900MHZ WHIP STR N

Find alt

Description

General part information

FG16397

Baton/Stick Antenna, Quad Band, LoRaWAN, External Mount, Stud/Screw/Lug Mount, RP-SMA, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain, FG Series

Technical Specifications

Parameters and characteristics for this part

SpecificationFG16397
Antenna TypeStraight, Whip
Frequency (Center/Band)1.9GHz, 900MHz, 850MHz, 2.4GHz
Frequency (Center/Band) - 1850 MHz
Frequency (Center/Band) - 2900 MHz
Frequency (Center/Band) - 31.9 GHz
Frequency (Center/Band) - 42.4 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum806 MHz
Frequency Range (Band 2) Maximum1.99 GHz
Frequency Range (Band 2) Minimum1.85 GHz
Frequency Range (Band 3) Maximum2.5 GHz
Frequency Range (Band 3) Minimum2.4 GHz
Gain3.3 dBi, 1 dBi, 2 dBi
Height (Max)14 in
Mounting TypeBracket Mount
Number of Bands4
Power - Max100 VA
TerminationN Type Female
VSWR2
