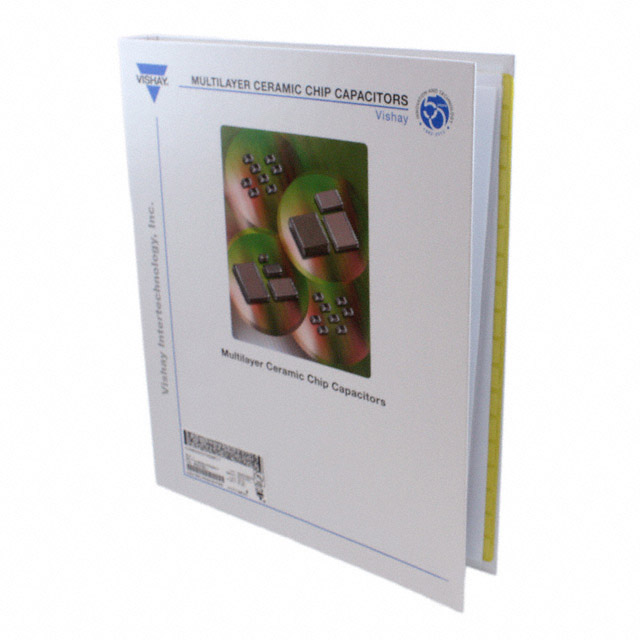

Specification	VJ0805HIFRQ2KIT

Applications	High Frequency, RF, Microwave
Capacitance Range (Max)	1000 pF
Capacitance Range (Min)	100 pF
Features	High Q, Low Loss
Kit Type	Ceramic
Mounting Type	Surface Mount, MLCC
Packages Included	0805 (2012 Metric)
Quantity	240 pcs
Quantity per Value	15 Each
Quantity Values	16 Values
Tolerance	5 %, 10 %
Tolerance	±5%, ±10%
Voltage - Rated (Max)	250 V
Voltage - Rated (Min)	50 V

VJ0805 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Thickness (Max)	Capacitance	Tolerance	Applications	Size / Dimension Length	Size / Dimension Width	Mounting Type	Voltage - Rated	Temperature Coefficient	Package / Case	Ratings	Features
Vishay Dale VJ0805A181JXBMC	150 °C	-55 °C	0.057 in	180 pF	5 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	100 VAC/DC	C0G NP0	0805 (2012 Metric)
Vishay Dale VJ0805A471FLCAJ32	150 °C	-55 °C	0.057 in	470 pF	1 %	Automotive	0.079 in	0.049 in	MLCC Surface Mount	200 VDC	C0G NP0	0805 (2012 Metric)	AEC-Q200	High Temperature
Vishay Dale VJ0805A102KXAPW1BC	125 °C	-55 °C	0.035 in	1000 pF	10 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	50 V	C0G NP0	0805 (2012 Metric)
Vishay Dale VJ0805Y332JXBPW1BC	125 °C	-55 °C	0.035 in	3300 pF	5 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	100 VAC/DC	X7R	0805 (2012 Metric)
Vishay Dale VJ0805Y123KXJMC	150 °C	-55 °C	0.057 in	0.012 µF	10 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	16 V	X7R	0805 (2012 Metric)
Vishay Dale VJ0805A180JXACW1BC	125 °C	-55 °C	0.03 in	18 pF	5 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	50 V	C0G NP0	0805 (2012 Metric)
Vishay Dale VJ0805D390FXBAJ	125 °C	-55 °C	0.057 in	39 pF	1 %	High Frequency Microwave RF	0.079 in	0.049 in	MLCC Surface Mount	100 VAC/DC	C0G NP0	0805 (2012 Metric)		High Q Low Loss
Vishay Dale VJ0805Y183MXXMP	150 °C	-55 °C	0.057 in	0.018 µF	20 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	25 VAC	X7R	0805 (2012 Metric)
Vishay Dale VJ0805D111FXBAJ	125 °C	-55 °C	0.057 in	110 pF	1 %	High Frequency Microwave RF	0.079 in	0.049 in	MLCC Surface Mount	100 VAC/DC	C0G NP0	0805 (2012 Metric)		High Q Low Loss
Vishay Dale VJ0805A222FXBPW1BC	125 °C	-55 °C	0.035 in	2200 pF	1 %	General Purpose	0.079 in	0.049 in	MLCC Surface Mount	100 VAC/DC	C0G NP0	0805 (2012 Metric)
