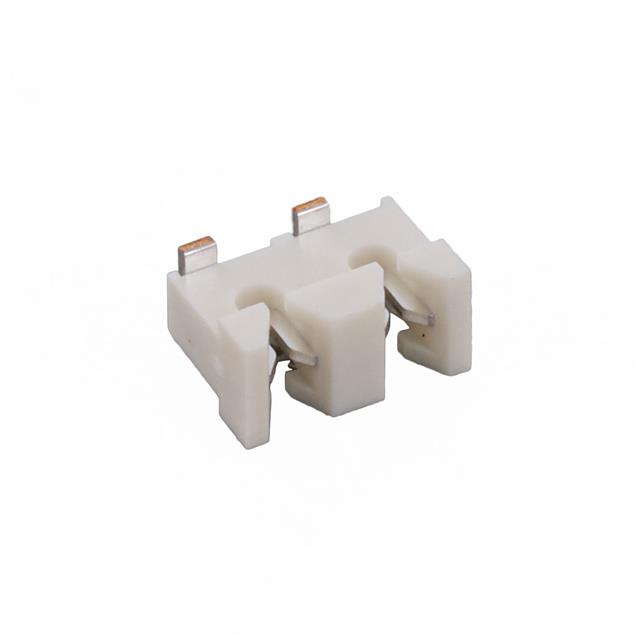

009175002002906
ActiveKYOCERA AVX
CONN WIRE IDC
009175002002906
ActiveKYOCERA AVX
CONN WIRE IDC
Description
General part information
009175002002906
26-28 AWG SSL Contact, IDC Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 009175002002906 |
|---|---|
| Connector Type | Contact, IDC |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Per Contact) | 1 A |
| Housing Color | White |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 3 cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 125 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 26 AWG |
