Description
General part information
PRT-00119

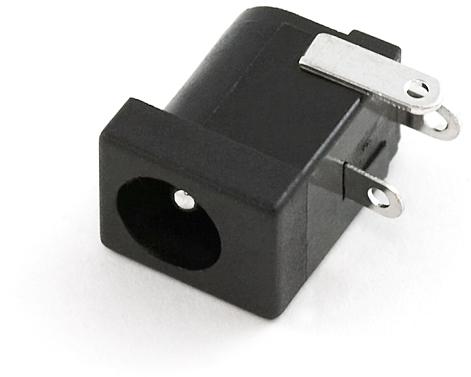

Power Barrel Connector Jack 0.079" (2.00mm ID), 0.256" (6.50mm OD) Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-00119 |
|---|---|
| Actual Diameter (ID) | 0.079 in |
| Actual Diameter (OD) | 0.256 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper |
| Contact Material - Plating | Nickel |
| Current Rating | 2.5 A |
| Gender | Male |
| Housing Material | PBT, Polybutylene Terephthalate |
| Industry Recognized Mating Diameter (ID) | 0.079 in |
| Industry Recognized Mating Diameter (OD) | 0.256 in |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
