1460196
ObsoletePhoenix Contact

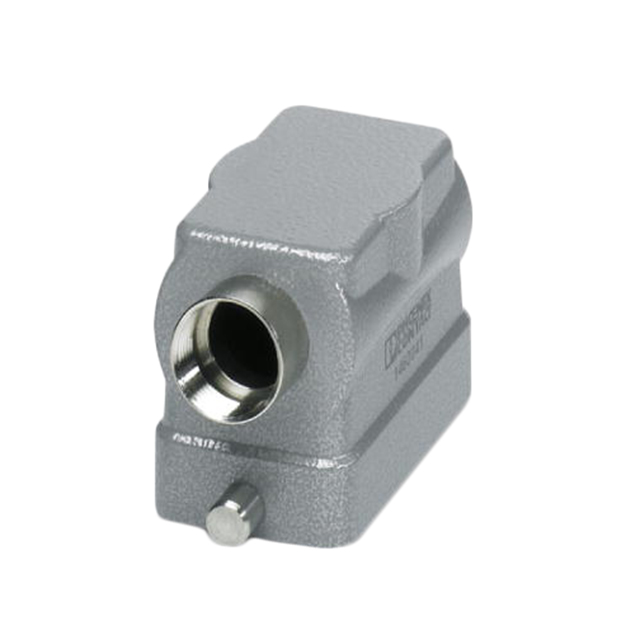

CONN HOOD SIDE ENTRY SZB6 M25
1460196
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB6 M25
Description
General part information
1460196
Hood Connector Side Entry M25 B6
Technical Specifications
Parameters and characteristics for this part
| Specification | 1460196 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B6 |
| Size / Dimension Height | 2.205 in |
| Size / Dimension Length | 2.362 in |
| Size / Dimension Width | 1.693 in |
| Style | Side Entry |
| Thread Size | M25 |
