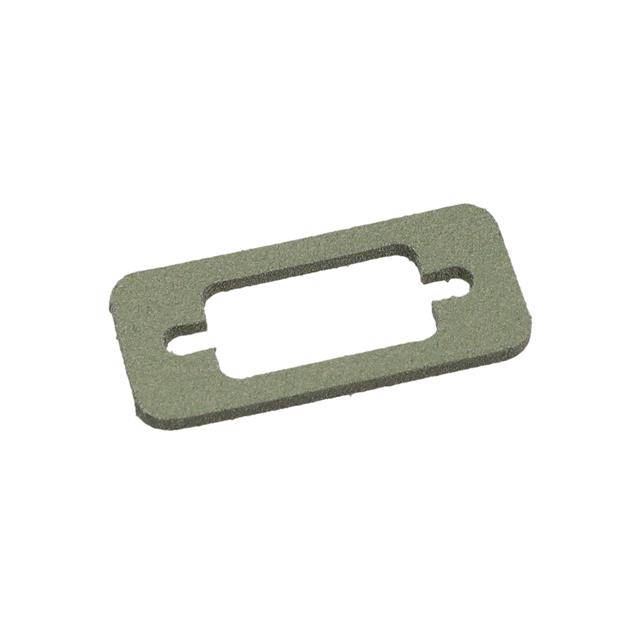

95-22036

Active

TE Kemtron

RFI GASKET FSA

Search across all available documentation for this part.

Active

TE Kemtron

RFI GASKET FSA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	95-22036	95-220 Series

Height [z]	0.063 in	0.031 - 0.063 "
Height [z]	1.6 mm	0.8 - 1.6 mm
Length	-	44.2 - 72.1 mm
Length	-	1.74 - 2.839 "
Length [x]	35.8 mm	35.8 - 74.4 mm
Length [x]	1.409 in	1.409 - 2.929 in
Material	Fluorosilicone Silver Aluminum	Silicone, Aluminum, Silver, Silicone Nickel Graphite, Fluorosilicone Silver Aluminum, Fluorosilicone Nickel Graphite
Shape	Rectangle	Rectangle
Type	Gasket	Gasket
Width	-	20.3 mm
Width	-	0.799 in
Width [x]	17.5 mm	17.5 mm
Width [x]	0.689 in	0.689 in

RFI GASKET SIL

Part	Shape	Length [x]	Length [x]	Type	Height [z]	Height [z]	Width [x]	Width [x]	Material	Length	Length	Width [y]	Width [y]
TE Kemtron 95-22024	Rectangle	2.929 in	74.4 mm	Gasket	0.031 "	0.8 mm	17.5 mm	0.689 in	Aluminum, Silicone, Silver
TE Kemtron 95-22003	Rectangle			Gasket	0.031 "	0.8 mm	17.5 mm	0.689 in	Silicone Nickel Graphite	57.91 mm	2.28 "
TE Kemtron 95-22031	Rectangle	1.409 in	35.8 mm	Gasket	0.031 "	0.8 mm	17.5 mm	0.689 in	Fluorosilicone Silver Aluminum
TE Kemtron 95-22007	Rectangle			Gasket	0.063 in	1.6 mm	17.5 mm	0.689 in	Silicone Nickel Graphite	44.2 mm	1.74 in
TE Kemtron 95-22036	Rectangle	1.409 in	35.8 mm	Gasket	0.063 in	1.6 mm	17.5 mm	0.689 in	Fluorosilicone Silver Aluminum
TE Kemtron 95-22029	Rectangle	2.929 in	74.4 mm	Gasket	0.063 in	1.6 mm	17.5 mm	0.689 in	Aluminum, Silicone, Silver
TE Kemtron 95-22001	Rectangle	1.409 in	35.8 mm	Gasket	0.031 "	0.8 mm	17.5 mm	0.689 in	Silicone Nickel Graphite
TE Kemtron 95-22037	Rectangle			Gasket	0.063 in	1.6 mm	17.5 mm	0.689 in	Fluorosilicone Silver Aluminum	44.2 mm	1.74 in
TE Kemtron 95-22025	Rectangle			Gasket	0.031 "	0.8 mm			Aluminum, Silicone, Silver	72.1 mm	2.839 in	20.3 mm	0.799 in
TE Kemtron 95-22039	Rectangle	2.929 in	74.4 mm	Gasket	0.063 in	1.6 mm	17.5 mm	0.689 in	Fluorosilicone Silver Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI GASKET FSA
