9966 009500

Active

Belden Inc.

CABLE 2CON 22AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 22AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9966 009500

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	0.174 "
Jacket (Insulation) Diameter [diameter]	4.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Communications
Wire Gauge	22 AWG

Part	Cable Type	Shield Material	Usage	Conductor Material	Shield Type	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand
Belden Inc. 9966 009500	Multi-Conductor	Copper Tinned	Communications	Copper Tinned	Braid	22 AWG	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	2	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	-20 C	105 ░C	90 %	500 '	152.4 m	0.174 "	4.42 mm	19 Strands	34 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.32

General part information

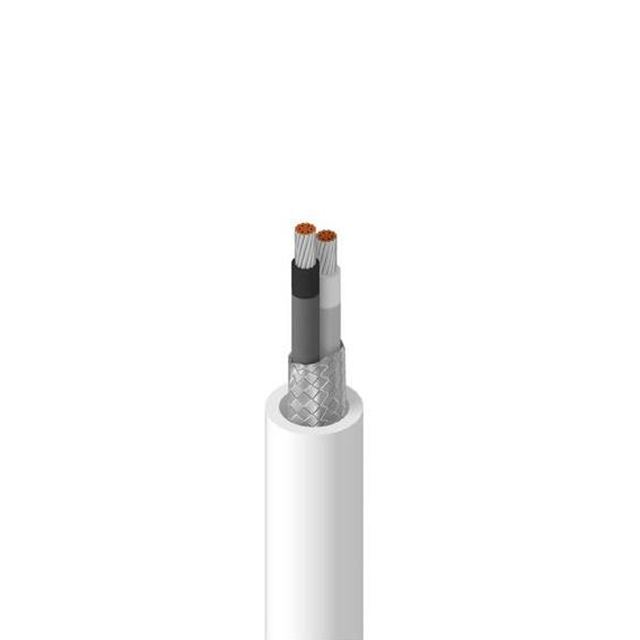

2 Conductor Multi-Conductor Cable White 22 AWG Braid 500.0' (152.4m)
