Description
General part information

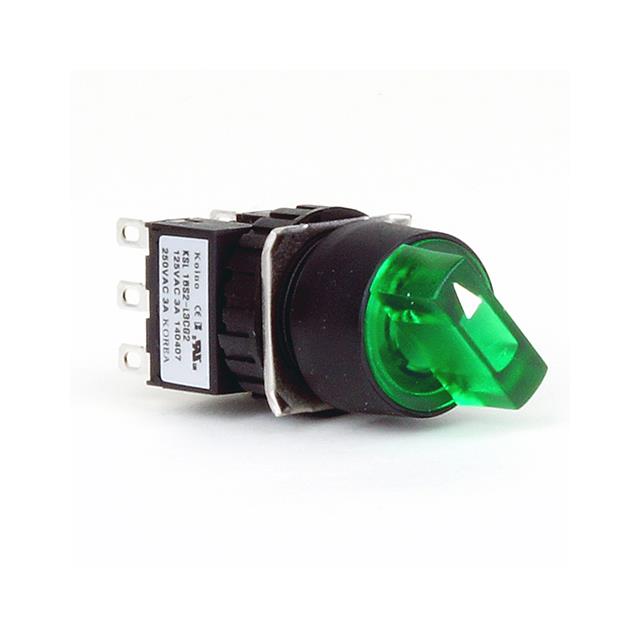

KSL16S2-L2CG1
Selector Switch 2 Position 3A (AC/DC) 250 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KSL16S2-L2CG1 |
|---|---|
| Approval Agency | cULus, CE |
| Color | Green |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Features | Bezel, Round |
| Illumination | Illuminated |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 12 V |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 300000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Off, Off-On |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
