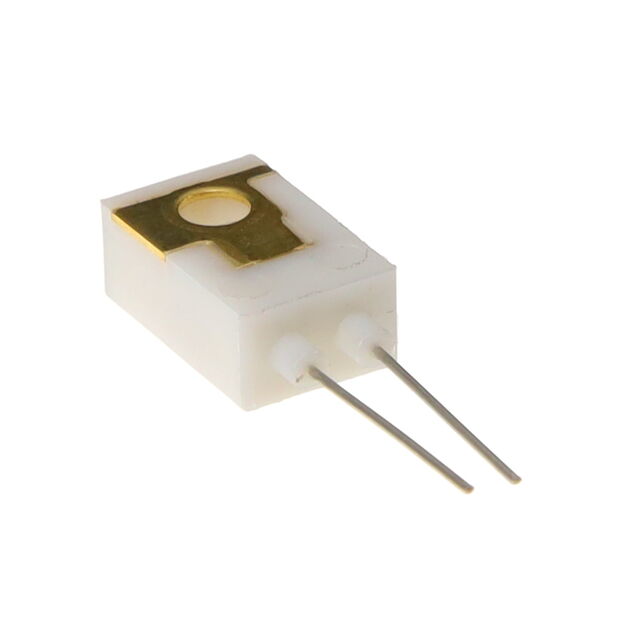

B57704M0103A001
ActiveEPCOS - TDK Electronics
NTC THERMISTOR SENSOR FOR INDUST
B57704M0103A001
ActiveEPCOS - TDK Electronics
NTC THERMISTOR SENSOR FOR INDUST
Description
General part information
B57704M0103A001
NTC Thermistor 10k Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B57704M0103A001 |
|---|---|
| B Value Tolerance | 1 % |
| Beta (B25/100) | 3988 K |
| Length - Lead Wire | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Power - Max | 60 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 2 % |
