D101K20Y5PL63L6R
ActiveVishay Dale
CAP CER 100PF 500V Y5P RADIAL
D101K20Y5PL63L6R
ActiveVishay Dale
CAP CER 100PF 500V Y5P RADIAL
Description
General part information
D101K20Y5PL63L6R

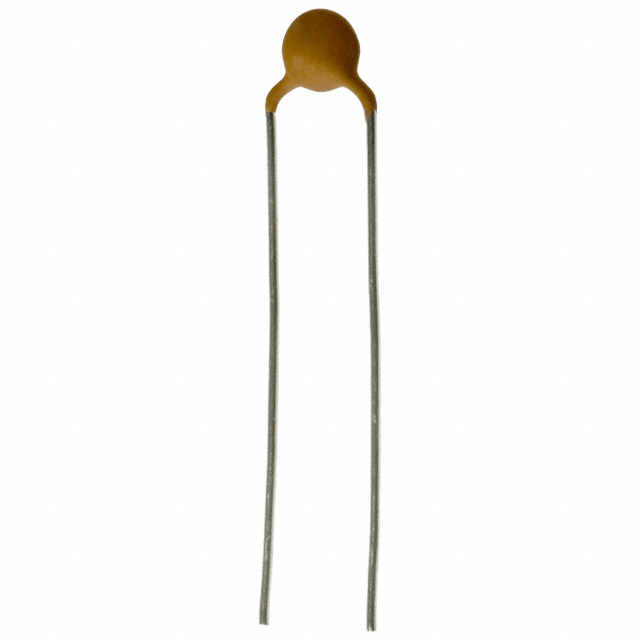

100 pF ±10% 500V Ceramic Capacitor Y5P (B) Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | D101K20Y5PL63L6R |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 pF |
| Height - Seated (Max) | 0.138 in |
| Lead Spacing | 0.25 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.197 in |
| Temperature Coefficient | Y5P (B) |
| Tolerance | 10 % |
| Voltage - Rated | 500 V |
