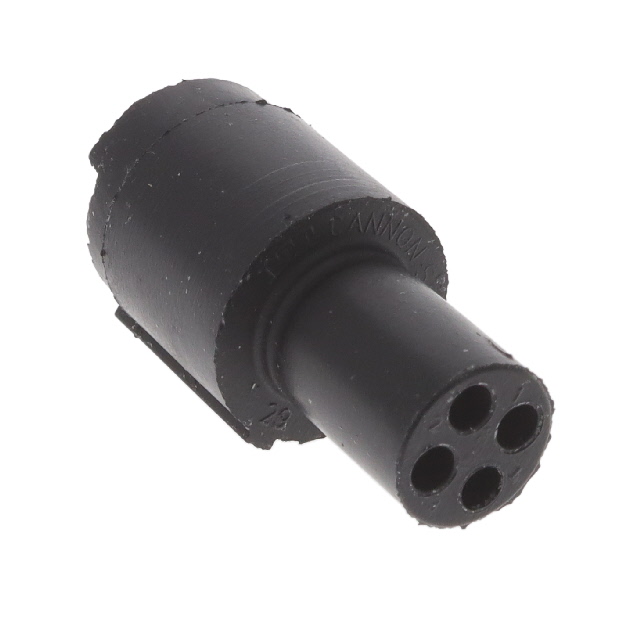

Specification	120-8551-002

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Material	Rubber
Shielding	Unshielded
Type	For Male Pins

120-8 Series

Part	Shell Material	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Fastening Type	Type	Orientation	Primary Material	Note	Contact Type	Mounting Type	Shielding	Housing Color	Number of Positions	Contact Finish - Mating	Color	Contact Material	Termination
PEI-Genesis 120-8551-005	Rubber	Circular	-40 °C	105 °C	Dust Tight Waterproof	IP67	Receptacle Housing	Push-Pull	For Male Pins	Keyed	Plastic	Contacts Not Included	Crimp	Free Hanging (In-Line)	Unshielded	Black	5
PEI-Genesis 120-8551-102			-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP65 IP67		Push-Pull		Keyed	Plastic			Panel Mount	Unshielded		4	Tin	Black	Copper Alloy	Crimp
PEI-Genesis 120-8552-101
PEI-Genesis 120-8551-102			-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP65 IP67		Push-Pull		Keyed	Plastic			Panel Mount	Unshielded		4	Tin	Black		Crimp
PEI-Genesis 120-8551-000	Rubber	Circular	-40 °C	105 °C	Dust Tight Waterproof	IP67	Receptacle Housing	Push-Pull	For Male Pins	Keyed		Contacts Not Included	Crimp	Free Hanging (In-Line)	Unshielded	Black	2
PEI-Genesis 120-8552-006	Rubber	Circular	-40 °C	105 °C	Dust Tight Waterproof	IP67	Plug Housing	Push-Pull	For Female Sockets	Keyed	Plastic	Contacts Not Included	Crimp	Free Hanging (In-Line)	Unshielded	Black	6
PEI-Genesis 120-8551-001	Rubber	Circular	-40 °C	105 °C	Dust Tight Waterproof	IP67	Receptacle Housing	Push-Pull	For Male Pins	Keyed		Contacts Not Included	Crimp	Free Hanging (In-Line)	Unshielded	Black	3
PEI-Genesis 120-8552-000	Rubber	Circular	-40 °C	105 °C	Dust Tight Waterproof	IP67	Plug Housing	Push-Pull	For Female Sockets	Keyed		Contacts Not Included	Crimp	Free Hanging (In-Line)	Unshielded	Black	2
PEI-Genesis 120-8551-100			-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP65 IP67		Push-Pull		Keyed	Plastic			Panel Mount	Unshielded		2	Tin	Black		Crimp
PEI-Genesis 120-8552-102	Rubber		-40 °C	105 °C	Dust Tight Waterproof	IP67	Female Sockets Plug	Push-Pull		Keyed	Plastic			Free Hanging (In-Line)	Unshielded		4	Tin	Black		Crimp
