1SNA115678R0200
ActiveTE Connectivity AMP Connectors
M6/8.STP.RS
1SNA115678R0200
ActiveTE Connectivity AMP Connectors
M6/8.STP.RS
Description
General part information
1SNA115678R0200

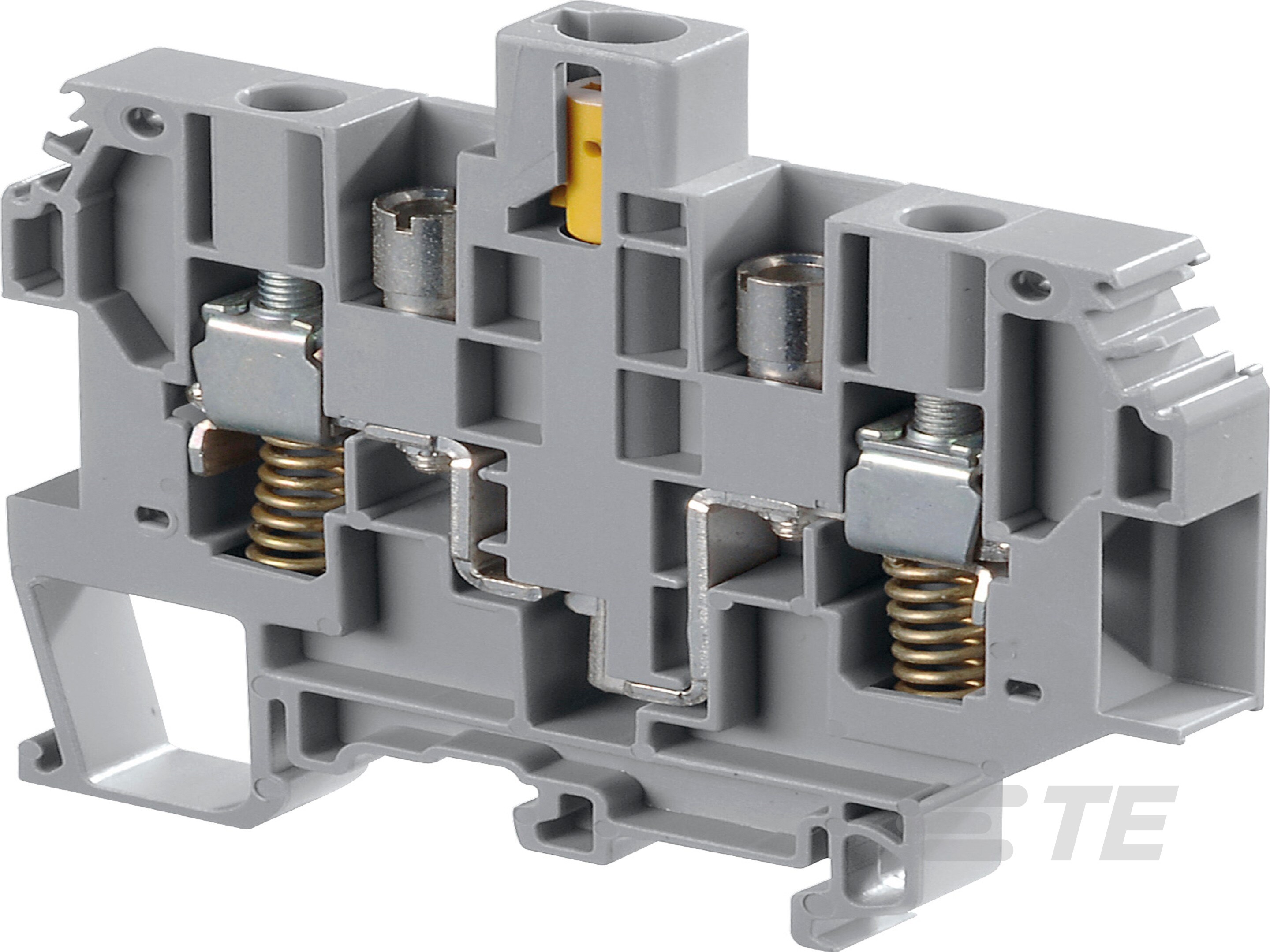

Screw Clamp Terminal Block, Disconnect, Gray, 8 mm [.314 in] Spacing, 2 Position, Screw Terminal, Signal, DIN Rail, 500 VAC, 8 AWG, 6 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNA115678R0200 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Disconnect Type | Switch, Knife |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 8 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG | 12 AWG |
| Wire Gauge or Range - AWG | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
