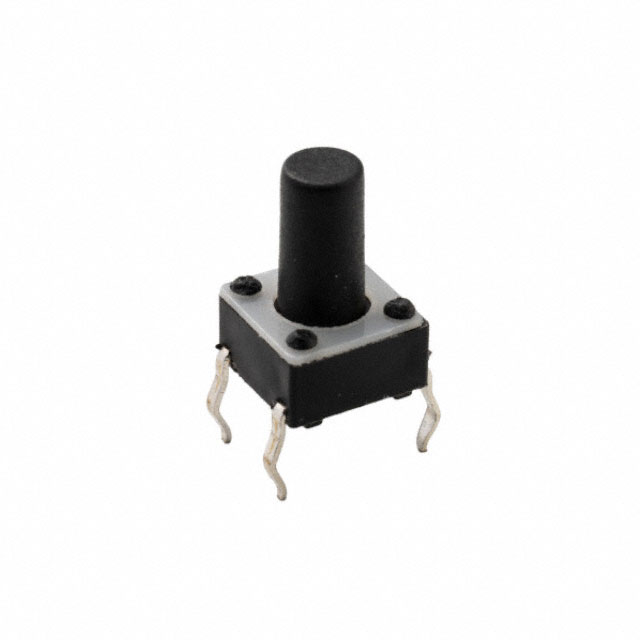

RTS-1105C-NL

Active

RDI, Inc.

TACT SWITCH

Search across all available documentation for this part.

Active

RDI, Inc.

TACT SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	RTS-1105C-NL

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	120 gf
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TACT SWITCH

Part	Circuit	Switch Function	Mounting Type	Actuator Orientation	Outline [y]	Outline [x]	Switch Travel	Actuator Height off PCB, Vertical	Illumination	Actuator Type	Operating Force	Contact Rating @ Voltage	Termination Style
RDI, Inc. RTS-1105C-NL	SPST-NO	Off-Mom	Through Hole	Top Actuated	6 mm	6 mm	0.25 mm	9.5 mm	Non-Illuminated	Standard	120 gf	0.05 A, 12 VDC	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
