84S-AB1-102
ActiveGrayhill Inc.

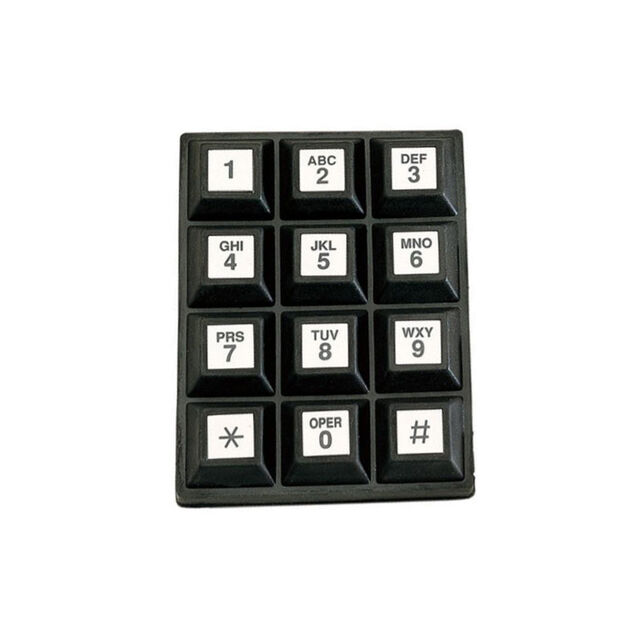

SWITCH KEYPAD 12KEY 0.01A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84S-AB1-102
ActiveGrayhill Inc.
SWITCH KEYPAD 12KEY 0.01A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84S-AB1-102 | 84S-AB1 Series |
|---|---|---|
| Contact Rating @ Voltage | 24 VDC, 0.01 A | 0.01 - 24 VDC |
| Features | Shielded | Shielded |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Key Color | White | White |
| Key Type | Rubber Overlay | Rubber Overlay |
| Legend | Telephone Format | Telephone Format |
| Legend Color | Black | Black |
| Legend Type | Fixed | Fixed |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Matrix (Columns x Rows) [custom] | 3 | 3 |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Number of Keys | 12 | 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Operational Life | 3000000 Cycles | 3000000 Cycles |
| Output Type | 1.81 mOhm | 1.81 mOhm |
| Switch Type | Snap Dome | Snap Dome |
| Termination Style | Pin Header | Pin Header |
84S-AB1 Series
SWITCH KEYPAD 12KEY 0.01A 24V
| Part | Output Type | Mounting Type | Number of Keys | Legend | Legend Color | Key Color | Key Type | Operating Temperature [Max] | Operating Temperature [Min] | Operational Life | Termination Style | Features | Switch Type | Contact Rating @ Voltage | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Legend Type | Ingress Protection | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 84S-AB1-112-N | 1.81 mOhm | Panel Mount, Front | 12 | Telephone Format | Black | White | Rubber Overlay | 85 °C | -55 °C | 3000000 Cycles | Pin Header | Shielded | Snap Dome | 0.01 A, 24 VDC | 4 | 3 | Fixed | IP67 - Dust Tight, Waterproof | Non-Illuminated |
Grayhill Inc. 84S-AB1-102 | 1.81 mOhm | Panel Mount, Front | 12 | Telephone Format | Black | White | Rubber Overlay | 85 °C | -55 °C | 3000000 Cycles | Pin Header | Shielded | Snap Dome | 0.01 A, 24 VDC | 4 | 3 | Fixed | IP67 - Dust Tight, Waterproof | Non-Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 73.61 | |
Description
General part information
84S-AB1 Series
Keypad Switch 12 Rubber Overlay Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC
