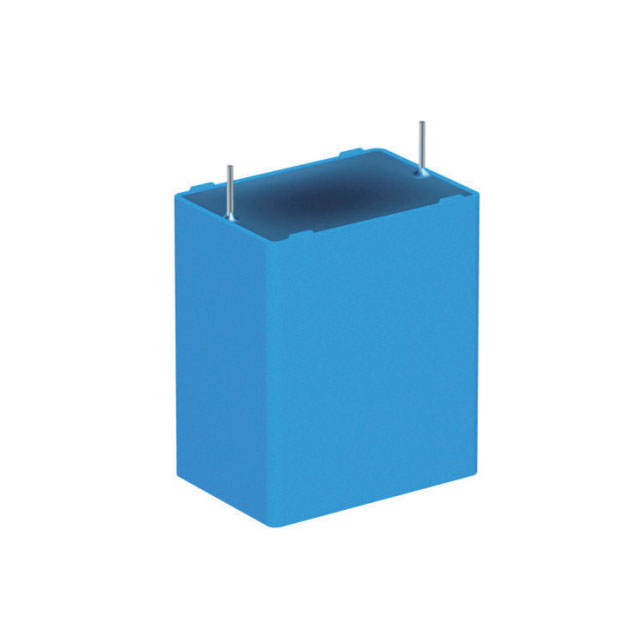

B32774X9305K000
ActiveEPCOS - TDK Electronics
CAP FILM 3UF 10% 900VDC RADIAL
B32774X9305K000
ActiveEPCOS - TDK Electronics
CAP FILM 3UF 10% 900VDC RADIAL
Description
General part information
B32774X9305K000
3 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32774X9305K000 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 3 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 22 mOhm |
| Features | Long Life |
| Height - Seated (Max) | 0.906 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.531 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 900 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
