Description
General part information

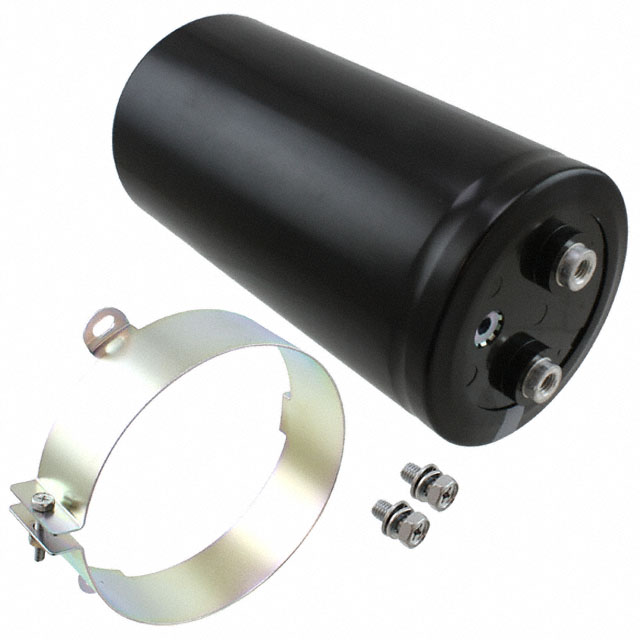

LNX2H103MSEK
10000 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNX2H103MSEK |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 µF |
| Height - Seated (Max) | 7.638 in |
| Lead Spacing | 1.634 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 23.8 A |
| Size / Dimension Diameter | 3.937 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
