ACS08E22-14S(003)
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED CONN PLU
ACS08E22-14S(003)
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED CONN PLU
Description
General part information
ACS08E22-14S(003)

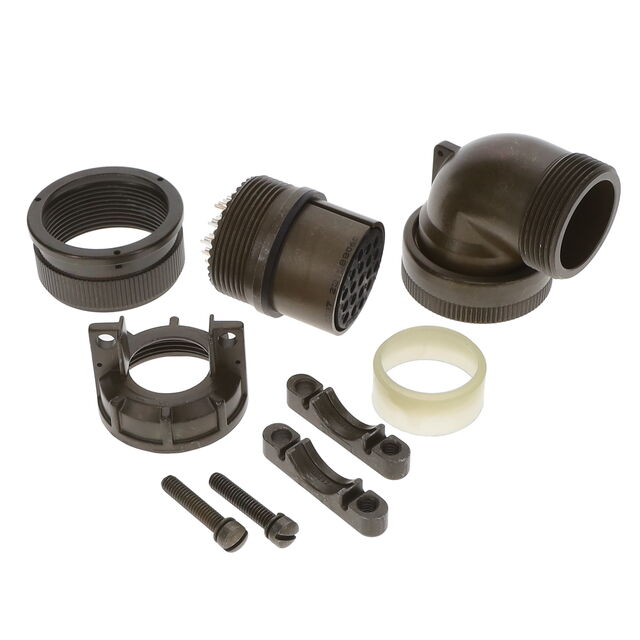

19 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | ACS08E22-14S(003) |
|---|---|
| Applications | Automotive, Industrial |
| Backshell Material, Plating | Aluminum Alloy, Olive Drab Cadmium |
| Cable Opening | 0.75 in |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 19 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-5015 Derivative |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 22 mm |
| Shell Size - Insert Width | 14 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 500 VAC |
| Voltage Rating (DC) | 700 VDC |
