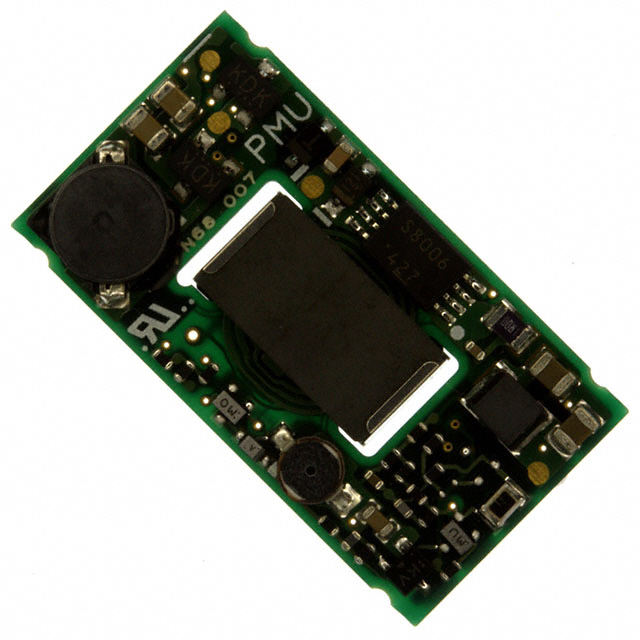

MPD5D016S
ObsoleteMurata Electronics
DC DC CONVERTER 2.5V 5W
MPD5D016S
ObsoleteMurata Electronics
DC DC CONVERTER 2.5V 5W
Description
General part information
MPD5D Series
Isolated Module DC DC Converter 1 Output 2.5V 1.2A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MPD5D016S |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 1.2 A |
| Efficiency | 80 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 7-SMD Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.17 in |
| Size / Dimension Length | 1.06 in |
| Size / Dimension Width | 0.57 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 2.5 V |
