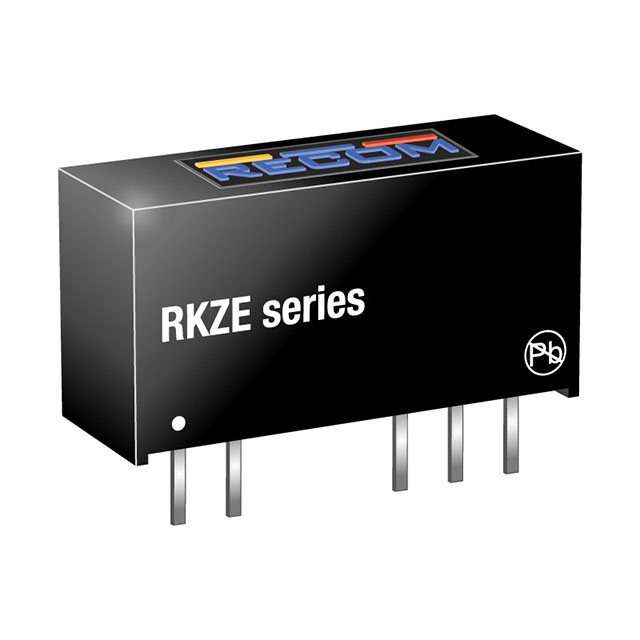

Specification	RKZE-1212D/H

Applications	ITE (Commercial)
Current - Output (Max) Options	84mA
Efficiency	85 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	7-SIP
Power (Watts)	2 w
Size / Dimension Height	0.4 in
Size / Dimension Length	0.77 in
Size / Dimension Width	0.28 in
Type	Isolated Module
Voltage - Input (Max)	13.2 V
Voltage - Input (Min)	10.8 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

RKZE Series

...

Part	Voltage - Input (Max)	Voltage - Output 1	Current - Output (Max)	Voltage - Isolation	Mounting Type	Efficiency	Type	Number of Outputs	Applications	Features	Power (Watts)	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Package Leads	Package Name	Voltage - Output 2	Current - Output (Max) Options
Recom Power RKZE-1215S/HP	13.2 V	15 V	133 mA	4000 Vpk	Through Hole	86 %	Isolated Module	1	ITE (Commercial)	SCP	2 w	10.8 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	4 Leads	7-SIP Module
Recom Power RKZE-1215D	13.2 V	15 V	66 mA	3 kV	Through Hole	86 %	Isolated Module	2	ITE (Commercial)		2 w	10.8 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-15 V
Recom Power RKZE-0512S/HP	5.5 V	12 V	167 mA	4000 Vpk	Through Hole	88 %	Isolated Module	1	ITE (Commercial)	SCP	2 w	4.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	4 Leads	7-SIP Module
Recom Power RKZE-2405D/H	26.4 V	5 V	200 mA	4000 Vpk	Through Hole	85 %	Isolated Module	2	ITE (Commercial)		2 w	21.6 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-5 V
Recom Power RKZE-1515D/HP	16.5 V	15 V	66 mA	4000 Vpk	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 w	13.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-15 V
Recom Power RKZE-0515D/HP	5.5 V	15 V	66 mA	4000 Vpk	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 w	4.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-15 V
Recom Power RKZE-0515D/P	5.5 V	15 V	66 mA	3 kV	Through Hole	86 %	Isolated Module	2	ITE (Commercial)	SCP	2 w	4.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-15 V
Recom Power RKZE-1512D/HP	16.5 V	12 V		4000 Vpk	Through Hole	85 %	Isolated Module	2	ITE (Commercial)	SCP	2 w	13.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-12 V	84mA
Recom Power RKZE-1205S/P	13.2 V	5 V	400 mA	3 kV	Through Hole	83 %	Isolated Module	1	ITE (Commercial)	SCP	2 w	10.8 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	4 Leads	7-SIP Module
Recom Power RKZE-0505D/P	5.5 V	5 V	200 mA	3 kV	Through Hole	85 %	Isolated Module	2	ITE (Commercial)	SCP	2 w	4.5 V	80 °C	-40 °C	0.4 in	0.77 in	0.28 in	5 Leads	7-SIP	-5 V
