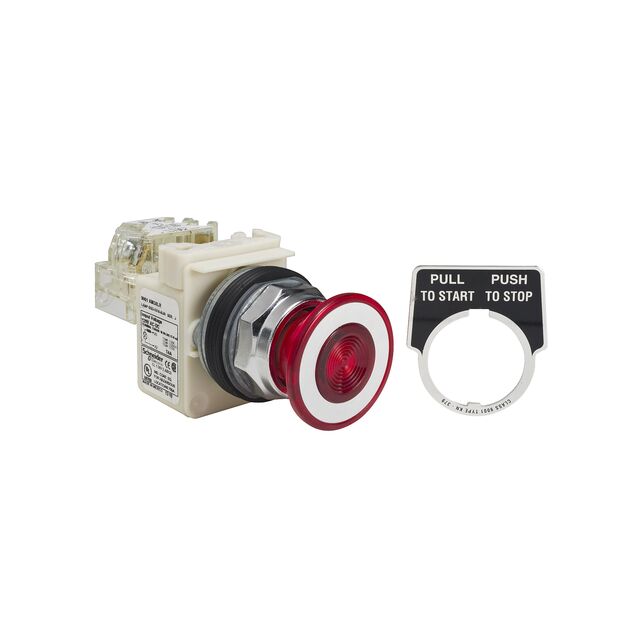

9001KR9P38LRRH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
9001KR9P38LRRH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
Description
General part information
9001KR9P38LRRH13
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KR9P38LRRH13 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | SPDT |
| Color | Red |
| Color - Actuator/Cap | Red |
| Current Rating | 10 A |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 120 V |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
