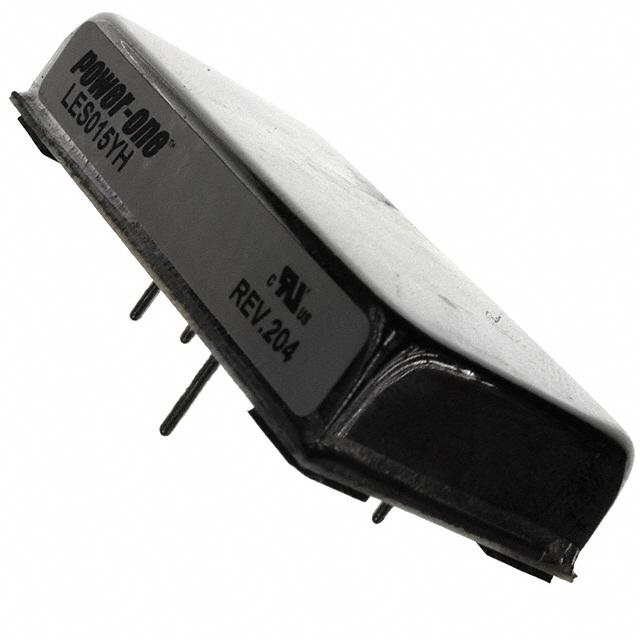

LES015YH
ObsoleteBel Fuse Inc.
DC DC CONVERTER 12V 15W
LES015YH
ObsoleteBel Fuse Inc.
DC DC CONVERTER 12V 15W
Description
General part information
LES015YH
Isolated Module DC DC Converter 1 Output 12V 1.25A 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LES015YH |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1.25 A |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 12 V |
