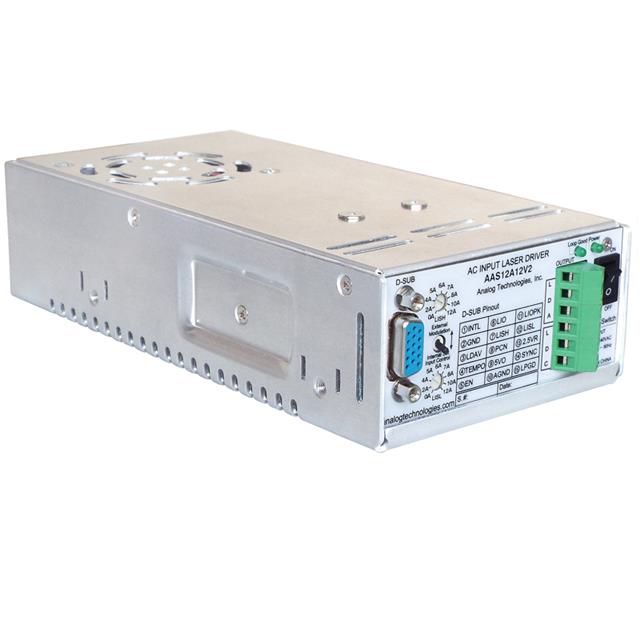

AAS12A12V2
ActiveAnalog Technologies, Inc.
AC INPUT 12A 12V LASER DRIVER
AAS12A12V2
ActiveAnalog Technologies, Inc.
AC INPUT 12A 12V LASER DRIVER
Description
General part information
AAS12A12V2
0 ~ 12V Output Bench (AC to DC) Power Supply Analog 0 ~ 12A Output Features
Technical Specifications
Parameters and characteristics for this part
| Specification | AAS12A12V2 |
|---|---|
| Accuracy - Ammeter (Percent) | 0.5 % |
| Accuracy - Voltmeter (Percent) | 0.5 % |
| Current - Output (Max) | 12 A |
| Current - Output (Min) | 0 A |
| Display Type | Analog |
| Number of Outputs | 1 |
| Size / Dimension Height | 1.949 in |
| Size / Dimension Length | 7.835 in |
| Size / Dimension Width | 3.898 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 12 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
