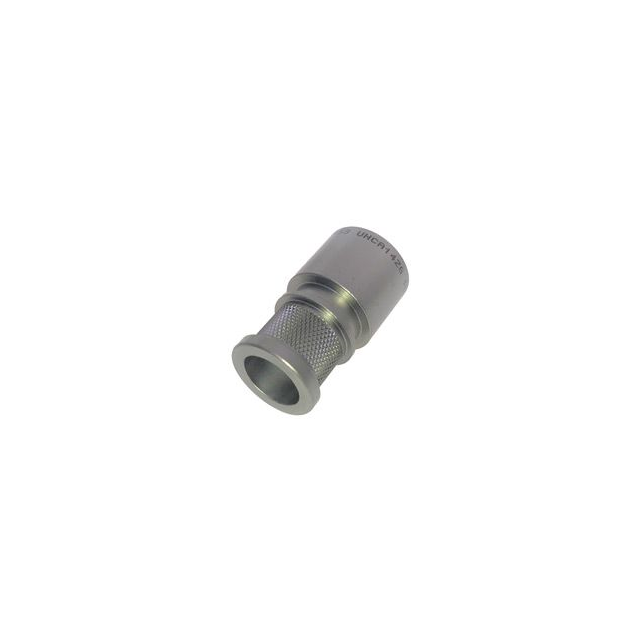

Specification	IP-UNCC8ZG

Cable Exit Angle	180 °
Cable Opening	0.312 in
Color	Gray
For Use With/Related Products	MIL-DTL-26482 Series I, II, MIL-DTL-5015 Series, MIL-DTL-38999 Series I
Includes	Backshell, O-Ring
Includes Total Count	2 pcs
Material	Aluminum
Plating	Zinc Nickel
Shell Size - Insert	9, 8, 8S
Shielding	Unshielded
Type	Banding, Backshell

IP-U Series

...

Part	Thread Size	Material	For Use With/Related Products	Color	Shell Size - Insert	Plating	Shielding	Includes Total Count	Includes	Diameter - Outside	Type	Cable Exit Angle	Cable Opening	Shell Size - Insert
PEI-Genesis IP-UNAK13W-PG13.5	PG13.5	Aluminum	MIL-DTL-38999 Series III	Olive Drab	13	Cadmium over Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring	0.99 in	Adapter Backshell	180 °	0.614 in
PEI-Genesis IP-UNCB22W		Aluminum	MIL-DTL-5015 Series	Olive Drab	22	Cadmium over Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring		Backshell Banding	180 °	0.813 in	22
PEI-Genesis IP-UNAC10N-PG9	PG9	Aluminum	MIL-DTL-26482 Series I	Silver	10 11	Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring	0.865 in	Adapter Backshell	180 °	0.488 in
PEI-Genesis IP-UNAC16W-PG16	PG16	Aluminum		Olive Drab	16 17	Cadmium over Electroless Nickel	Unshielded			1.146 in	Adapter Backshell	180 °	0.835 in
PEI-Genesis IP-UNAK15N-PG16	PG16	Aluminum	MIL-DTL-38999 Series III	Silver	15	Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring	1.146 in	Adapter Backshell	180 °	0.709 in	15
PEI-Genesis IP-UNCC24N
PEI-Genesis IP-UNAA14N-PG13.5	PG13.5	Aluminum	MIL-DTL-26482 Series II MIL-DTL-5015 Series	Silver	12 14 14S	Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring	0.99 in	Adapter Backshell	180 °	0.618 in
PEI-Genesis IP-UNCK17N		Aluminum	MIL-DTL-38999 Series III	Silver	17 E	Electroless Nickel	Unshielded	2 pcs	Backshell O-Ring		Backshell Banding	180 °	0.687 in
PEI-Genesis IP-UNAB22W-PG21	PG21	Aluminum		Olive Drab	22	Cadmium over Electroless Nickel	Unshielded			1.428 in	Adapter Backshell	180 °	1.059 in	22
PEI-Genesis IP-UNCA24W		Aluminum		Olive Drab	24	Cadmium over Electroless Nickel	Unshielded				Backshell Banding	180 °	0.937 in	24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
