27RT187675
ActiveEssentra Components
PAWL LOCK, .187 HOLE, .030-.512
27RT187675
ActiveEssentra Components
PAWL LOCK, .187 HOLE, .030-.512
Description
General part information
27RT187675

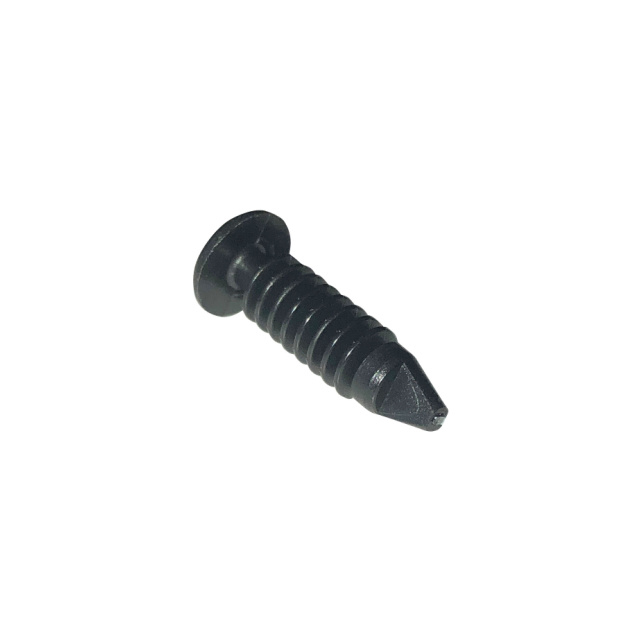

Barbed Fastener 0.030" ~ 0.512" (0.76mm ~ 13.01mm) Grip Range Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 27RT187675 |
|---|---|
| Color | Black |
| Grip Range (Maximum) | 0.512 in |
| Grip Range (Minimum) | 0.03 in |
| Head Diameter | 0.438 in |
| Head Height | 0.07 in |
| Hole Diameter | 0.187 in |
| Hole Diameter (Info) | 3/16" |
| Material | Nylon |
| Rivet Length | 0.68 in |
| Type | Barbed Fastener |
