U7Y029D
ObsoleteTDK Corporation

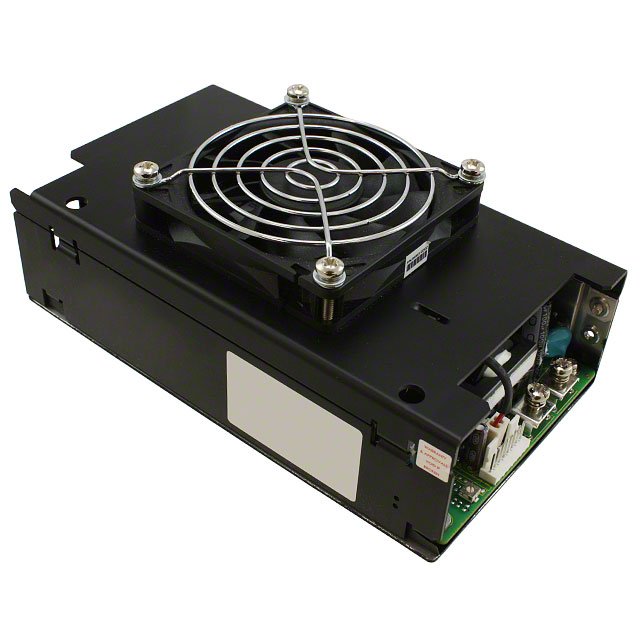

AC/DC CONVERTER 48V 400W
U7Y029D
ObsoleteTDK Corporation
AC/DC CONVERTER 48V 400W
Description
General part information
U7Y029D
Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | U7Y029D |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output 1 | 8.33 A |
| Efficiency | 94 % |
| Features | Universal Input, Remote On/Off, Standby Output, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 400 W |
| Size / Dimension Height | 2.8 in |
| Size / Dimension Length | 7 in |
| Size / Dimension Width | 3.94 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 48 V |
