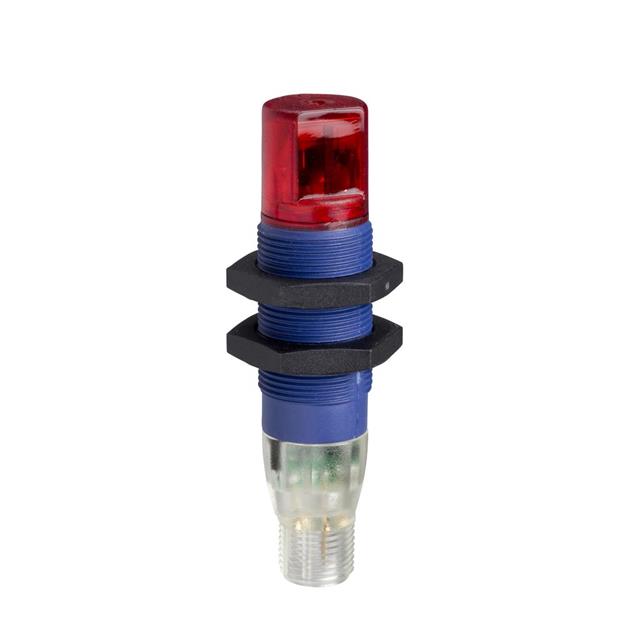

XUB9BPAWM12
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, 6.56FT, PNP/SPST-NO, POLARIZED REFLEX, 12 TO 24VDC, 4 PIN M12 CONNECTOR
XUB9BPAWM12
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, 6.56FT, PNP/SPST-NO, POLARIZED REFLEX, 12 TO 24VDC, 4 PIN M12 CONNECTOR
Description
General part information
XUB9BPAWM12
Reflective, Polarized Optical Sensor 78.740" (2m) PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUB9BPAWM12 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67, IP65, IP69K |
| Light Source | Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP-NO |
| Response Time | 1 ms |
| Sensing Distance | 78.74 " |
| Sensing Method | Polarized, Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
