9001KT35L31
ObsoleteSCHNEIDER ELECTRIC

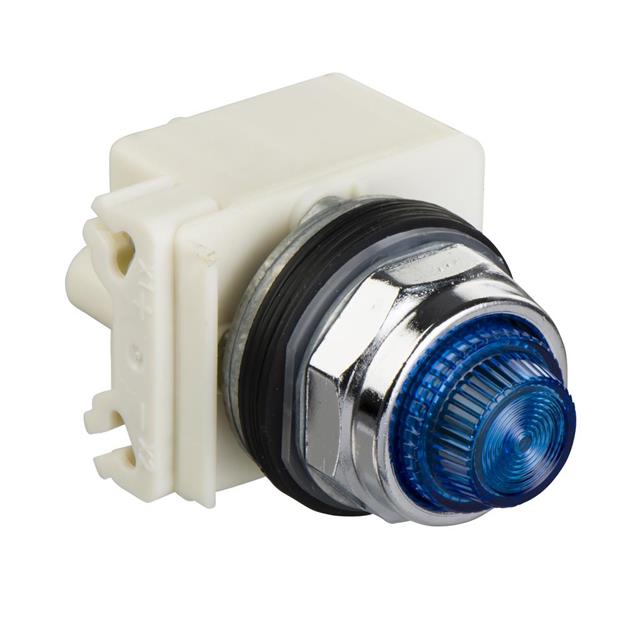

PILOT LIGHT 120VAC 30MM TYPE K +
9001KT35L31
ObsoleteSCHNEIDER ELECTRIC
PILOT LIGHT 120VAC 30MM TYPE K +
Description
General part information
9001KT35L31
Incandescent Panel Indicator Fresnel 24V ~ 28V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KT35L31 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lens Color | Blue |
| Lens Style | Round, Flat Top |
| Lens Transparency | Fresnel |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | Incandescent |
| Voltage (Max) | 28 V |
| Voltage (Min) | 24 V |
