1-1775441-4
ActiveTE Connectivity AMP Connectors

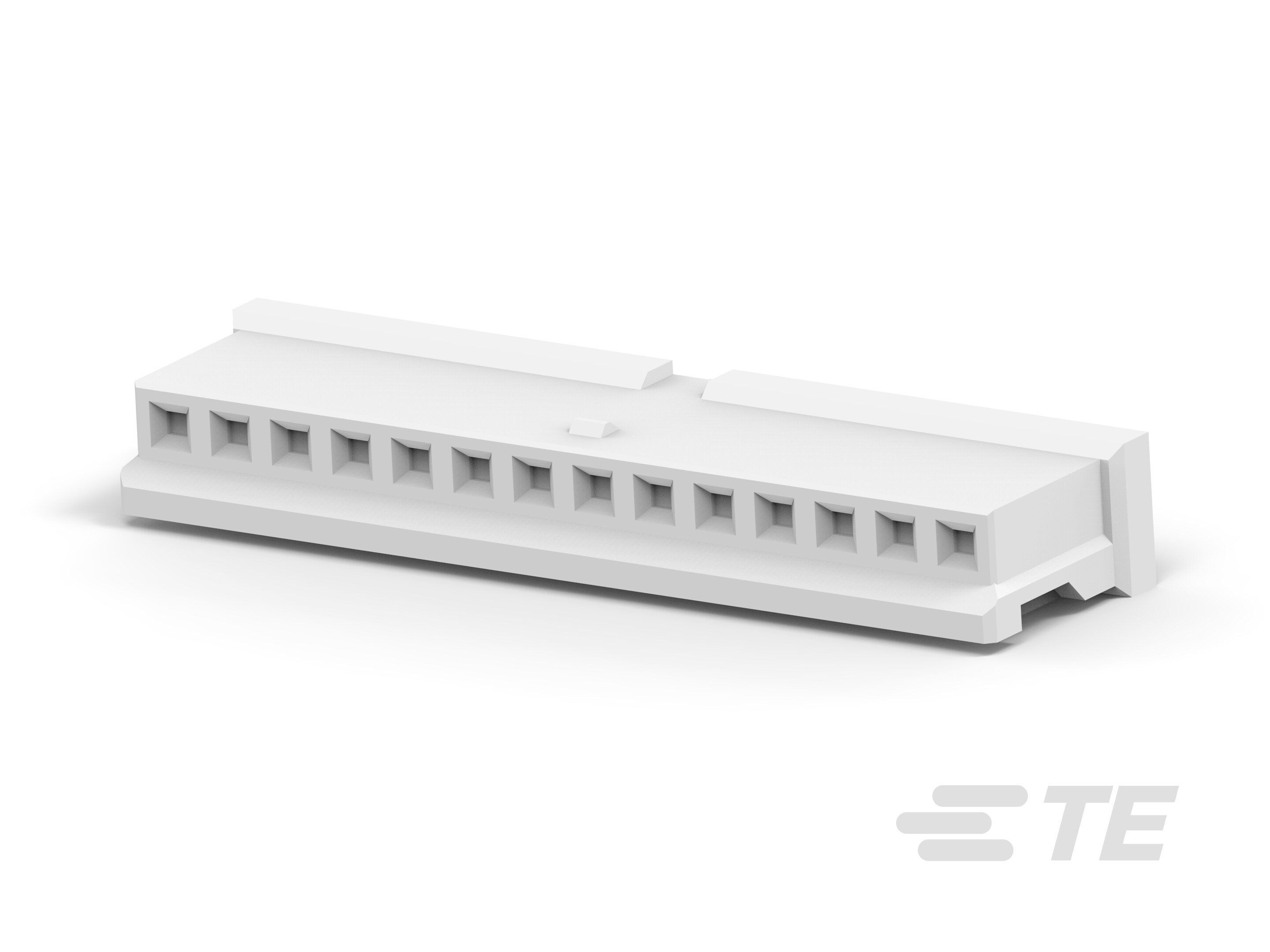

EMIX CONN., 1.5MM PITCH, RCPT, HSG, 14P
1-1775441-4
ActiveTE Connectivity AMP Connectors
EMIX CONN., 1.5MM PITCH, RCPT, HSG, 14P
Description
General part information
1-1775441-4
14 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 1.5 mm [.059 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Power & Signal, HPI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1775441-4 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.059 in |
