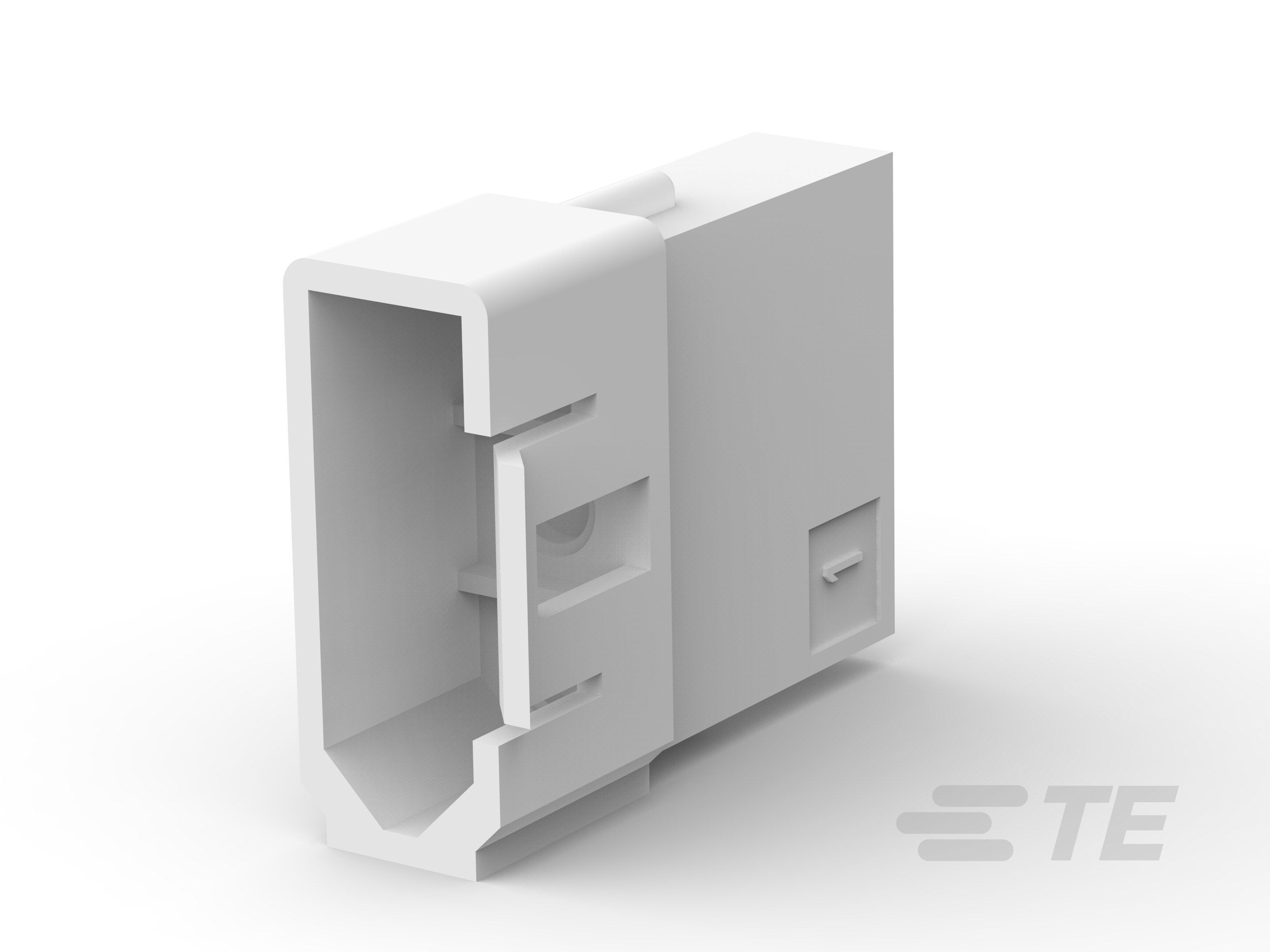

770276-1
ActiveTE Connectivity AMP Connectors
03P .093 COMM P&S PLUG .250CL ROHS COMPLIANT: YES
770276-1
ActiveTE Connectivity AMP Connectors
03P .093 COMM P&S PLUG .250CL ROHS COMPLIANT: YES
Description
General part information
770276-1
3 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-2, 6.35 mm [.25 in] Centerline, 1 Row, 600 VAC, Commercial Pin and Socket Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 770276-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female, Male, Female |
| Fastening Type | Detent Lock |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
