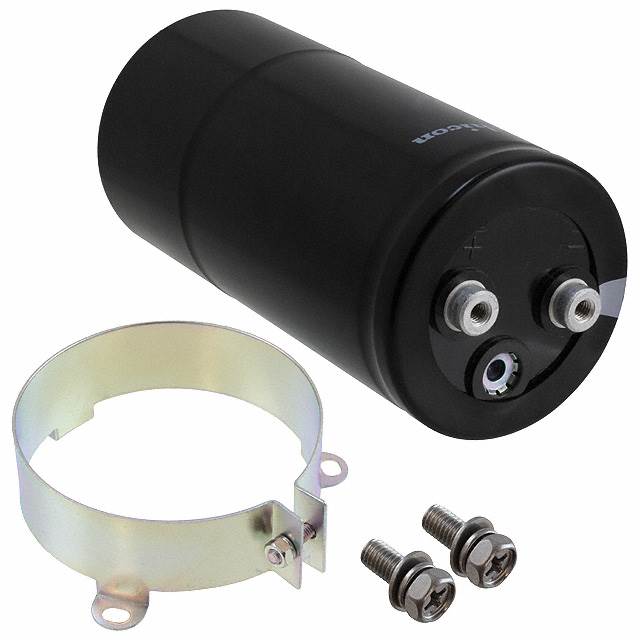

Specification	LNX2J102MSEG

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max)	5.236 in
Lead Spacing	1.126 in
Lifetime	2000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	5.9 A
Size / Dimension Diameter	2.5 in
Tolerance	20 %
Voltage - Rated	630 V

LNX Series

Part	Height - Seated (Max)	Lead Spacing	Polarization	Applications	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Ripple Current	Lifetime	Size / Dimension Diameter	Mounting Type	Tolerance	Voltage - Rated	Capacitance
Nichicon LNX2V103MSEJ	6.024 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	21.3 A 29.82 A	20000 Hrs	3.543 in	Chassis Mount	20 %	350 V	10000 µF
Nichicon LNX2V103MSEHBB	6.811 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	21.8 A 30.52 A	20000 Hrs	3 in	Chassis Mount	20 %	350 V	10000 µF
Nichicon LNX2H152MSEG	3.661 in	1.126 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	5.5 A	5000 Hrs	2.5 in	Chassis Mount	20 %	500 V	1500 µF
Nichicon LNX2H123MSEKBN	8.819 in	1.634 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	27.8 A 38.92 A	20000 Hrs	3.937 in	Chassis Mount	20 %	350 V	12000 µF
Nichicon LNX2W822MSEHBN	8.78 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	20.3 A 28.42 A	20000 Hrs	3 in	Chassis Mount	20 %	450 V	8200 µF
Nichicon LNX2H392MSEH	6.024 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	12.1 A	5000 Hrs	3 in	Chassis Mount	20 %	500 V	3900 µF
Nichicon LNX2G332MSEHBN	4.055 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	9.3 A 13.02 A	20000 Hrs	3 in	Chassis Mount	20 %	400 V	3300 µF
Nichicon LNX2W682MSEJBB	6.024 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	17.1 A 23.94 A	20000 Hrs	3.543 in	Chassis Mount	20 %	450 V	6800 µF
Nichicon LNX2W822MSEH	8.78 in	1.252 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	25.7 A 35.98 A	20000 Hrs	3 in	Chassis Mount	20 %	450 V	8200 µF
Nichicon LNX2V272MSEG	3.661 in	1.126 in	Polar	General Purpose	Can - Screw Terminals Radial	85 °C	-25 °C	9.9 A 13.86 A	20000 Hrs	2.5 in	Chassis Mount	20 %	350 V	2700 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Snap-In Terminal, Terminal-Shape

Screw Terminal Type, Dimension of Bracket/Bushing

LNX2J102MSEG | Datasheet
