1-1589797-8
ActiveTE Connectivity AMP Connectors

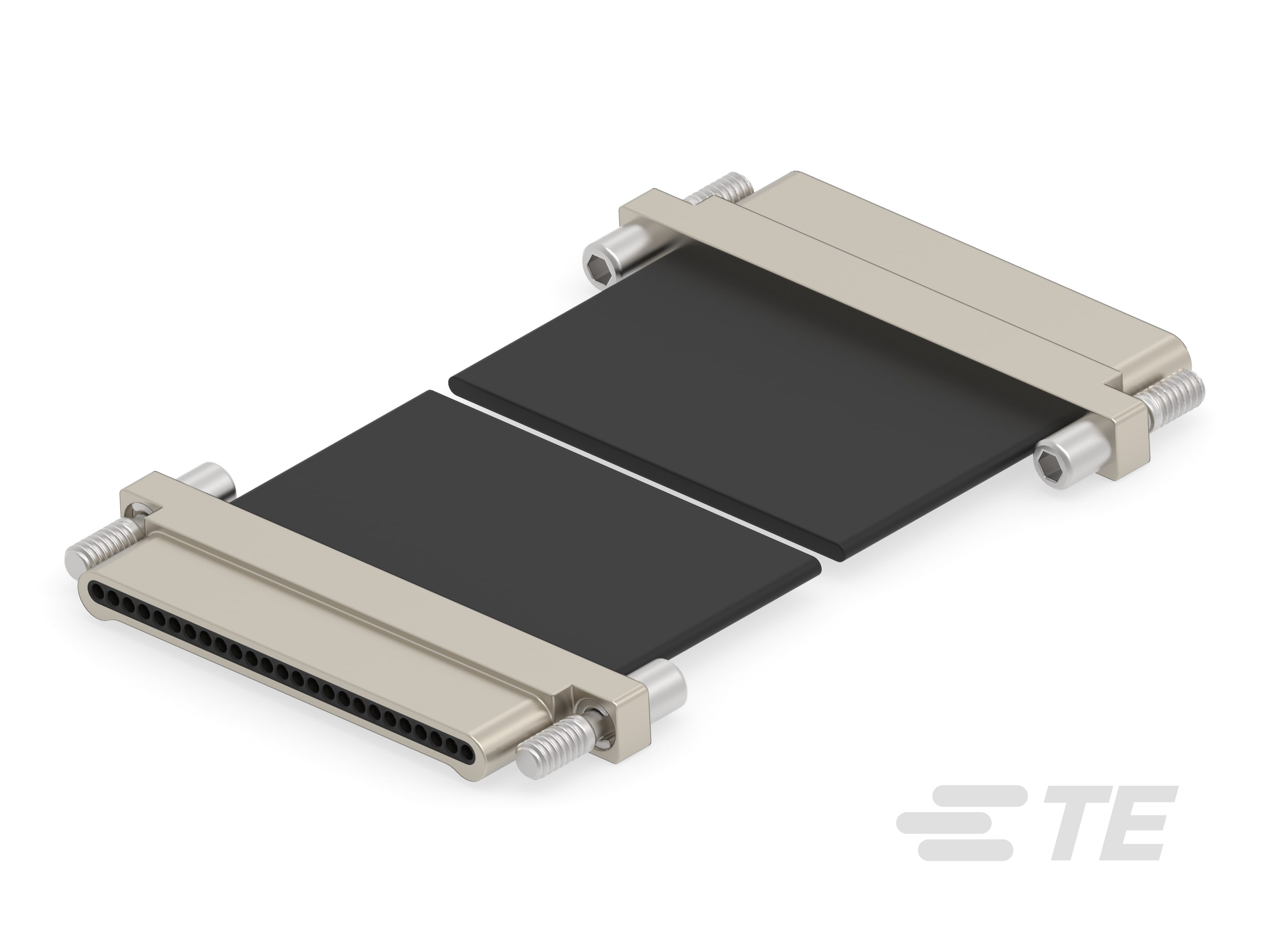

RECTANGULAR CABLE ASSEMBLIES JSM025PD2DCC04N = DUALOBE JUMPER
1-1589797-8
ActiveTE Connectivity AMP Connectors
RECTANGULAR CABLE ASSEMBLIES JSM025PD2DCC04N = DUALOBE JUMPER
Description
General part information
1-1589797-8
25 Position D-Shaped Connector, Plug, Board-to-Board, Cable Mount (Free-Hanging), .64 mm [.025 in] Centerline, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1589797-8 |
|---|---|
| 1st Connector | Male Pins, Plug |
| 2nd Connector | Male Pins, Plug |
| Number of Positions | 25 |
| Shielding | Unshielded |
| Type | DB25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
