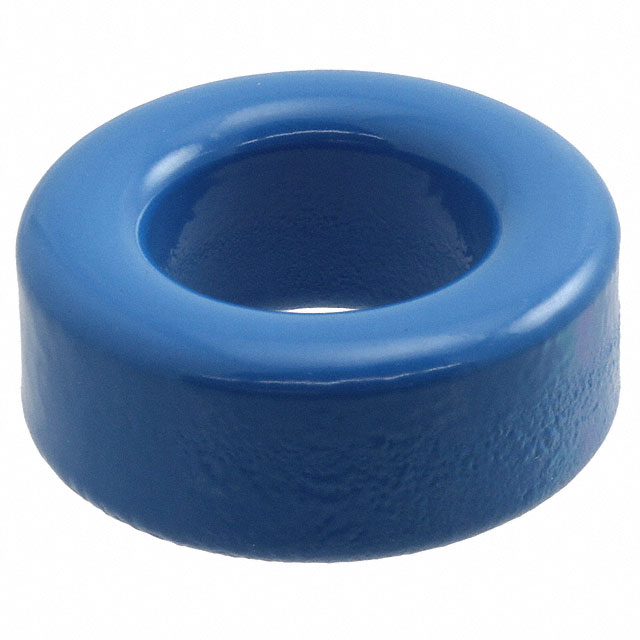

Specification	B64290L0632X087

Core Factor (ΣI/A)	1.3 mm⁻²
Core Factor (ΣI/A) mm⁻¹	1.3 mm⁻¹
Core Type	Toroid
Diameter	0.835 in
Effective Area (Ae)	33.63 mm²
Effective Length (le)	43.55 mm
Effective Magnetic Volume (Ve)	1465 mm³
Finish	Epoxy
Gap	Ungapped
Height	0.319 in
Inductance Factor (Al)	2.13 µH
Initial Permeability (µi)	2200
Material	N87
Tolerance	25 %
