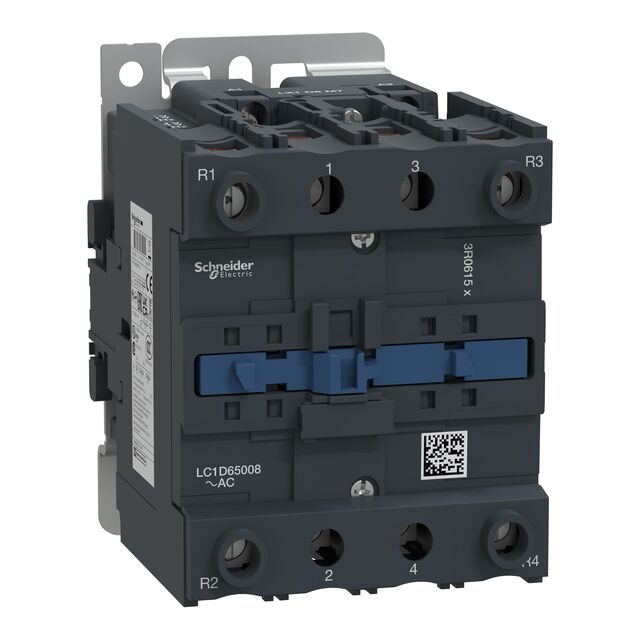

LC1D65008G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR DECA 80A AC1 4P- 2P2R
LC1D65008G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR DECA 80A AC1 4P- 2P2R
Description
General part information
LC1D65008G7
CONTACTOR DECA 80A AC1 4P- 2P2R
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D65008G7 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | B, PST-2NO/2NC, Form, A, 2 |
| Contact Rating (Current) | 80 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 36 VDC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
