LCCA31063-M1
ActivePasternack

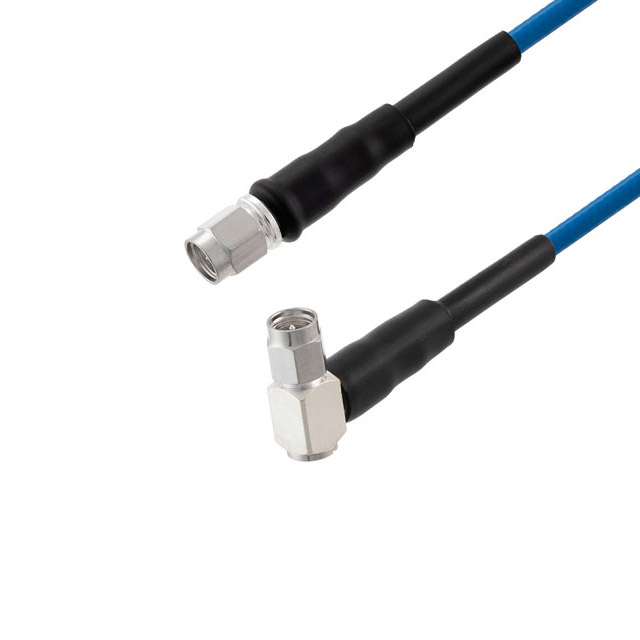

SMA MALE TO SMA MALE RIGHT ANGLE
LCCA31063-M1
ActivePasternack
SMA MALE TO SMA MALE RIGHT ANGLE
Description
General part information
LCCA31063-M1
Cable Assembly Coaxial SMA to SMA TFT-402LF 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31063-M1 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 39.4 in |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
