X93154UU8IZ-3

Active

Renesas Electronics Corporation

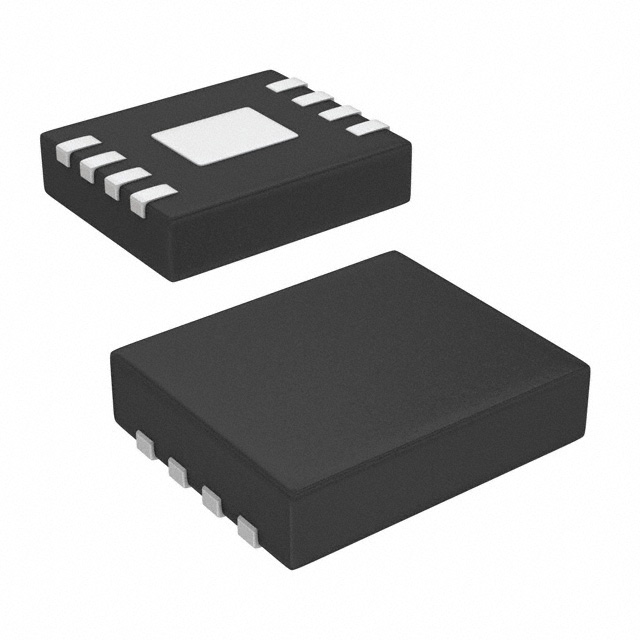

IC DGTL POT 50KOHM 32TAP 8TDFN

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC DGTL POT 50KOHM 32TAP 8TDFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X93154UU8IZ-3	X93154 Series

Configuration	Rheostat	Rheostat
Interface	Up/Down	Up/Down
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-VFDFN Exposed Pad	8-MSOP, 8-TSSOP, 8-VFDFN Exposed Pad
Package / Case	-	0.118 in
Package / Case	-	3 mm
Resistance - Wiper (Ohms) (Typ) [Max]	1000 Ohms	1000 Ohms
Resistance (Ohms)	50 kOhms	50 kOhms
Supplier Device Package	8-TDFN	8-MSOP, 8-TDFN
Supplier Device Package [x]	2.5	2.5
Supplier Device Package [y]	2	2
Taper	Linear	Linear
Temperature Coefficient (Typ)	35 ppm/°C	35 ppm/°C
Tolerance	30 %	30 %
Voltage - Supply [Max]	3.3 V	3.3 V
Voltage - Supply [Min]	2.7 V	2.7 V

IC DGTL POT 50KOHM 32TAP 8MSOP

Part	Interface	Package / Case	Package / Case [custom]	Package / Case	Configuration	Resistance - Wiper (Ohms) (Typ) [Max]	Temperature Coefficient (Typ)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Taper	Number of Circuits	Resistance (Ohms)	Mounting Type	Tolerance	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package [y]	Supplier Device Package [x]
Renesas Electronics Corporation X93154UM8IZ-3T1	Up/Down	8-MSOP, 8-TSSOP	0.118 in	3 mm	Rheostat	1000 Ohms	35 ppm/°C	8-MSOP	85 °C	-40 °C	Non-Volatile	Linear	1	50 kOhms	Surface Mount	30 %	2.7 V	3.3 V
Renesas Electronics Corporation X93154UM8IZ-3	Up/Down	8-MSOP, 8-TSSOP	0.118 in	3 mm	Rheostat	1000 Ohms	35 ppm/°C	8-MSOP	85 °C	-40 °C	Non-Volatile	Linear	1	50 kOhms	Surface Mount	30 %	2.7 V	3.3 V
Renesas Electronics Corporation X93154UU8IZ-3	Up/Down	8-VFDFN Exposed Pad			Rheostat	1000 Ohms	35 ppm/°C	8-TDFN	85 °C	-40 °C	Non-Volatile	Linear	1	50 kOhms	Surface Mount	30 %	2.7 V	3.3 V	2	2.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Digital Potentiometer 50k Ohm 1 Circuit 32 Taps Up/Down (U/D, INC, CS) Interface 8-TDFN (2.5x2.0)
