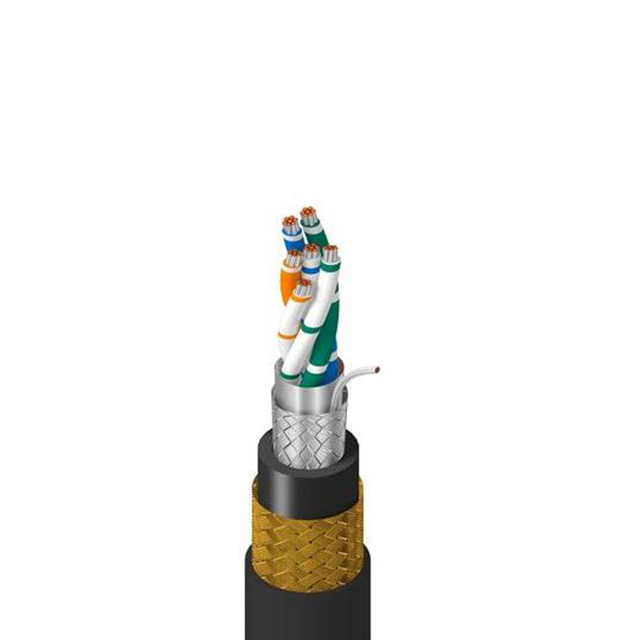

973108Z 0105000

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	973108Z 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.63 in
Jacket (Insulation) Diameter [diameter]	16 mm
Jacket Color	Black
Number of Conductors	6
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	22 AWG

Part	Jacket Color	Shield Material	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Insulation	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Coverage
Belden Inc. 973108Z 0105000	Black	Aluminum Copper Tinned	Braid Foil	22 AWG	7	30 AWG	Multi-Pair	Foam High Density Polyethylene (FHDPE)	Copper Tinned	0.63 in	16 mm	6	65 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 24.05

General part information

6 (3 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
