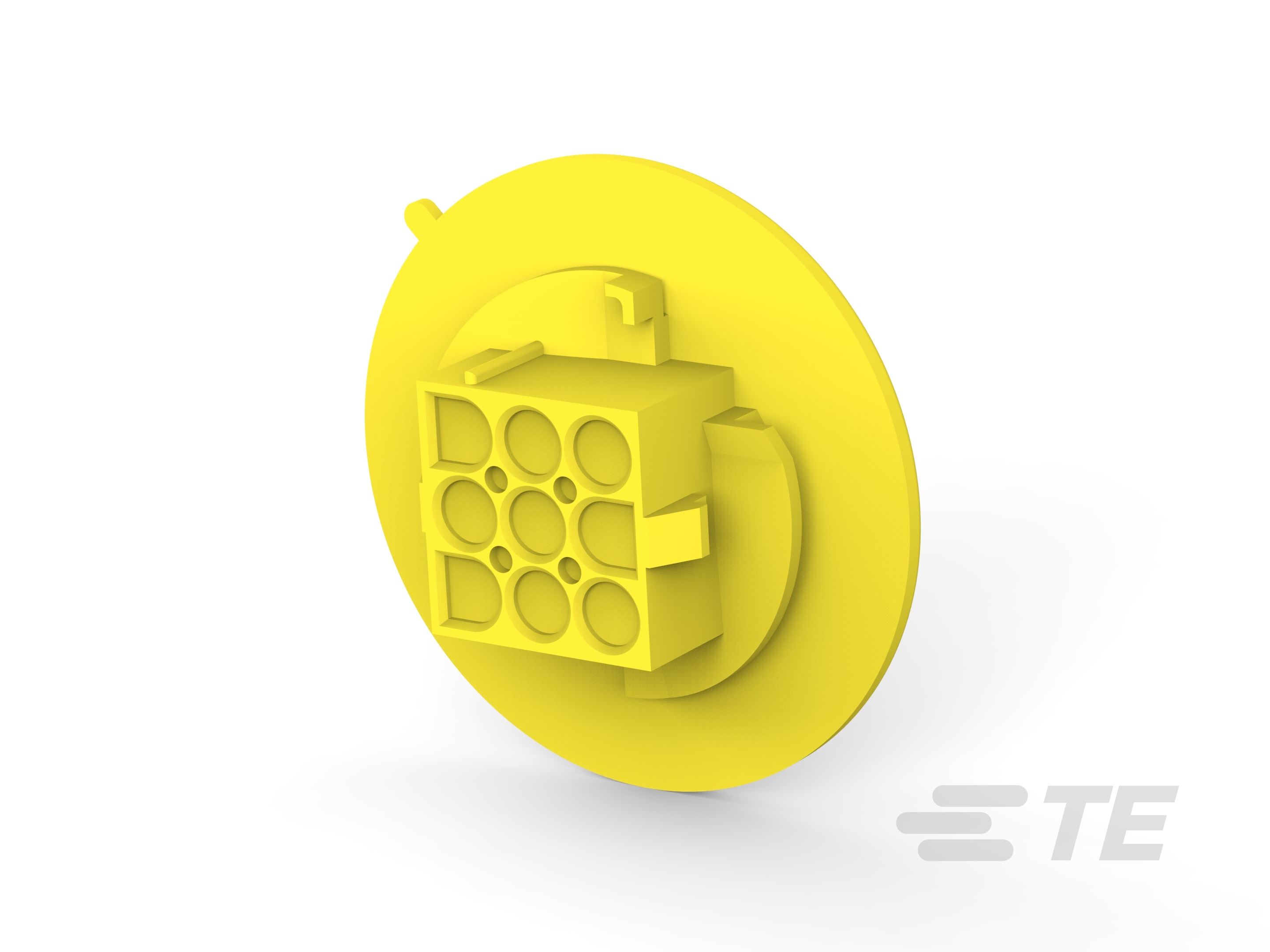

Specification	1-794761-4

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	9
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.25 in
Row Spacing	0.25 in

Universal MATE-N-LOK Series

...
