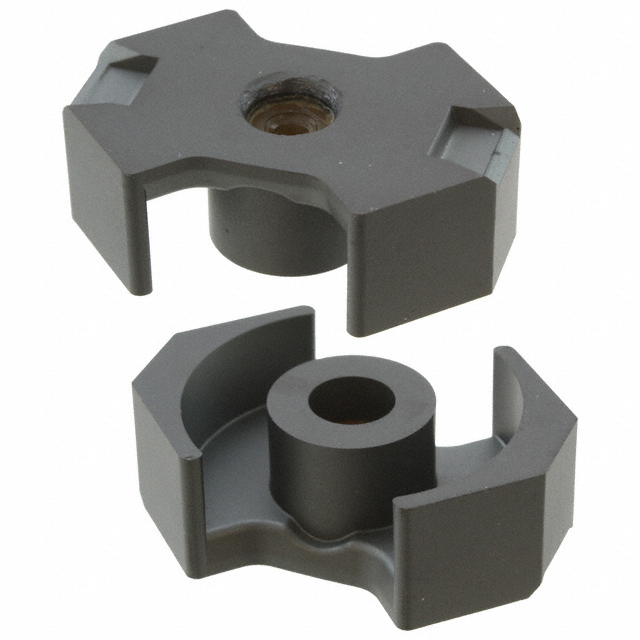

Specification	B65813N0630A048

Core Factor (ΣI/A)	0.5 mm⁻²
Core Factor (ΣI/A) mm⁻¹	0.5 mm⁻¹
Core Type	RM
Effective Area (Ae)	83 mm²
Effective Length (le)	42 mm
Effective Magnetic Volume (Ve)	3490 mm³
Effective Permeability (µe)	254
Finish	Uncoated
Gap	Gapped
Height	0.368 in
Inductance Factor (Al)	630 nH
Length	1.122 in
Material	N48
Package Name	RM 10
Tolerance	3 %
Width	0.531 in
