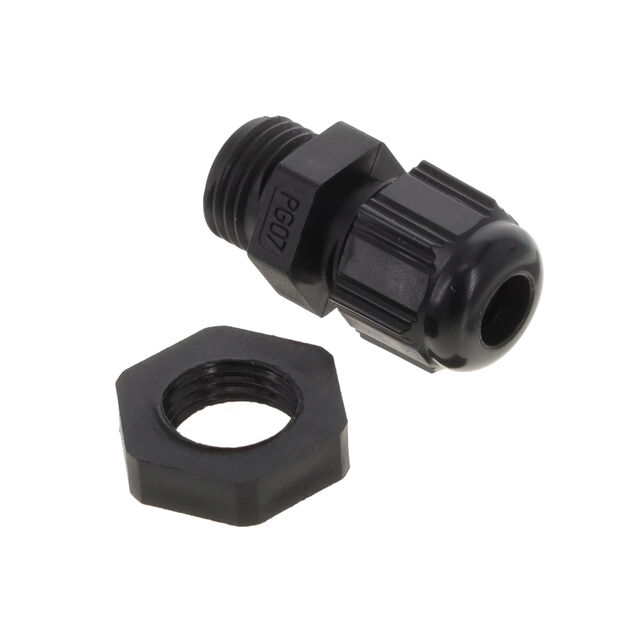

5308 507/SET
ActiveAltech Corporation
CABLE GLAND 2.5-6.5MM PG7
5308 507/SET
ActiveAltech Corporation
CABLE GLAND 2.5-6.5MM PG7
Description
General part information
5308 Series
Cable Gland Polyamide (PA), Nylon PG7 Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 5308 507/SET |
|---|---|
| Color | Black |
| Includes | Locknut |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material | Nylon, Polyamide (PA) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Outside Cable Diameter (Max) | 0.256 in |
| Outside Cable Diameter (Min) | 0.098 in |
| Panel Hole Size | 0.492 in |
| Thread Length | 0.315 in |
| Thread Size | PG7 |
| Type | Cable Gland |
