CTH6VF-221K
ActiveCentral Technologies
220UH MINI AXL P-LINE INDUCTOR
CTH6VF-221K
ActiveCentral Technologies
220UH MINI AXL P-LINE INDUCTOR
Description
General part information
CTH6VF-221K

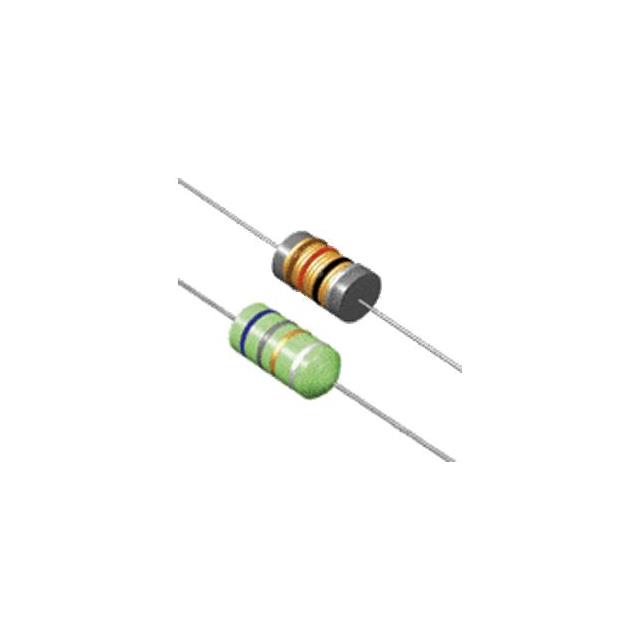

220 µH Unshielded Wirewound Inductor 320 mA 1.9Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | CTH6VF-221K |
|---|---|
| Current - Saturation (Isat) | 200 mA |
| Current Rating | 320 mA |
| DC Resistance (DCR) (Max) | 1.9 Ohm |
| Frequency - Self Resonant | 2.3 MHz |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.138 in |
| Size / Dimension Length | 0.394 in |
| Tolerance | 10 % |
| Type | Wirewound |
