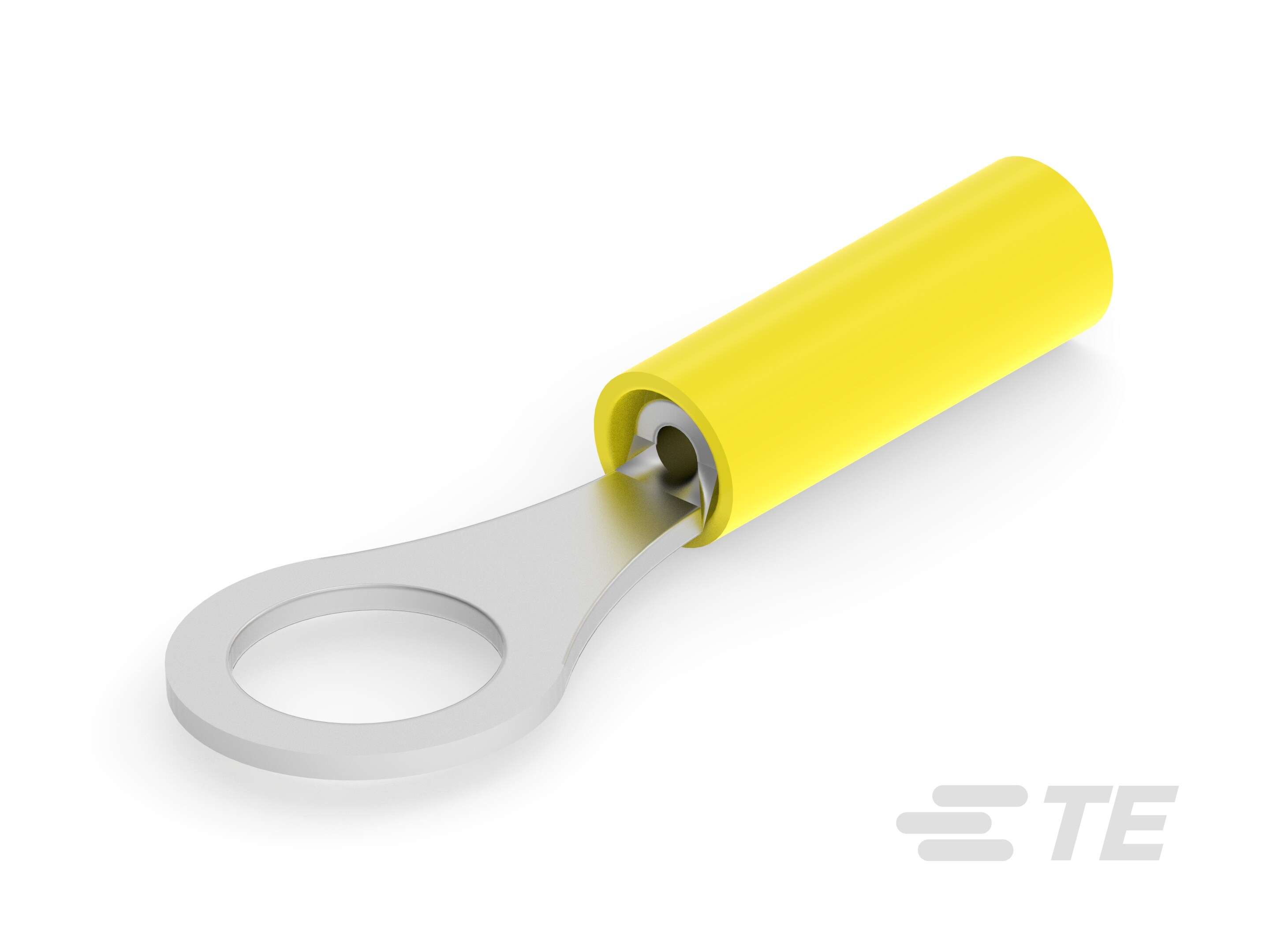

PIDG RING (26-22)-321021

321021

Active
TE Connectivity AMP Connectors

CONN RING CIRC 22-26AWG #8 CRIMP

Find alt
PIDG RING (26-22)-321021

321021

Active
TE Connectivity AMP Connectors

CONN RING CIRC 22-26AWG #8 CRIMP

Find alt

Description

General part information

321021

Closed Ring Tongue Terminal, 26 – 22 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification321021
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall0.74 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size8 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.018 in
Width - Outer Edges0.25 in
Wire Gauge (AWG) (Max)26 AWG
Wire Gauge (AWG) (Min)22 AWG
