1788059
ActivePhoenix Contact

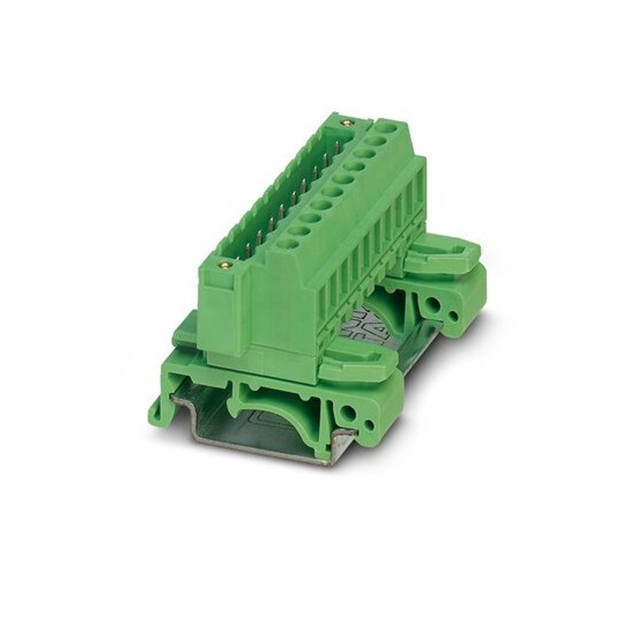

TERM BLK PLUG 15POS 42.5MM GREEN
1788059
ActivePhoenix Contact
TERM BLK PLUG 15POS 42.5MM GREEN
Description
General part information
1788059
15 Position Terminal Block Green Plug Connection - Ganged 42.5mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 1788059 |
|---|---|
| Current - IEC | 12 A |
| Current - UL | 12 A |
| Height (Max) | 1.984 in |
| Housing Color | Green |
| Length | 3.446 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 15 |
| Terminal Width | 42.5 mm |
| Termination Style | Screw, Plug Receptacles |
| Type | Plug Connection - Ganged |
| Voltage - UL | 250 V |
| Wire Gauge or Range - AWG (Max) | 30 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
