2468445-1
ActiveTE Connectivity AMP Connectors
34POS,SUPERSEAL,REC HSG ASSY,SLD,COD 1
2468445-1
ActiveTE Connectivity AMP Connectors
34POS,SUPERSEAL,REC HSG ASSY,SLD,COD 1
Description
General part information
2468445-1

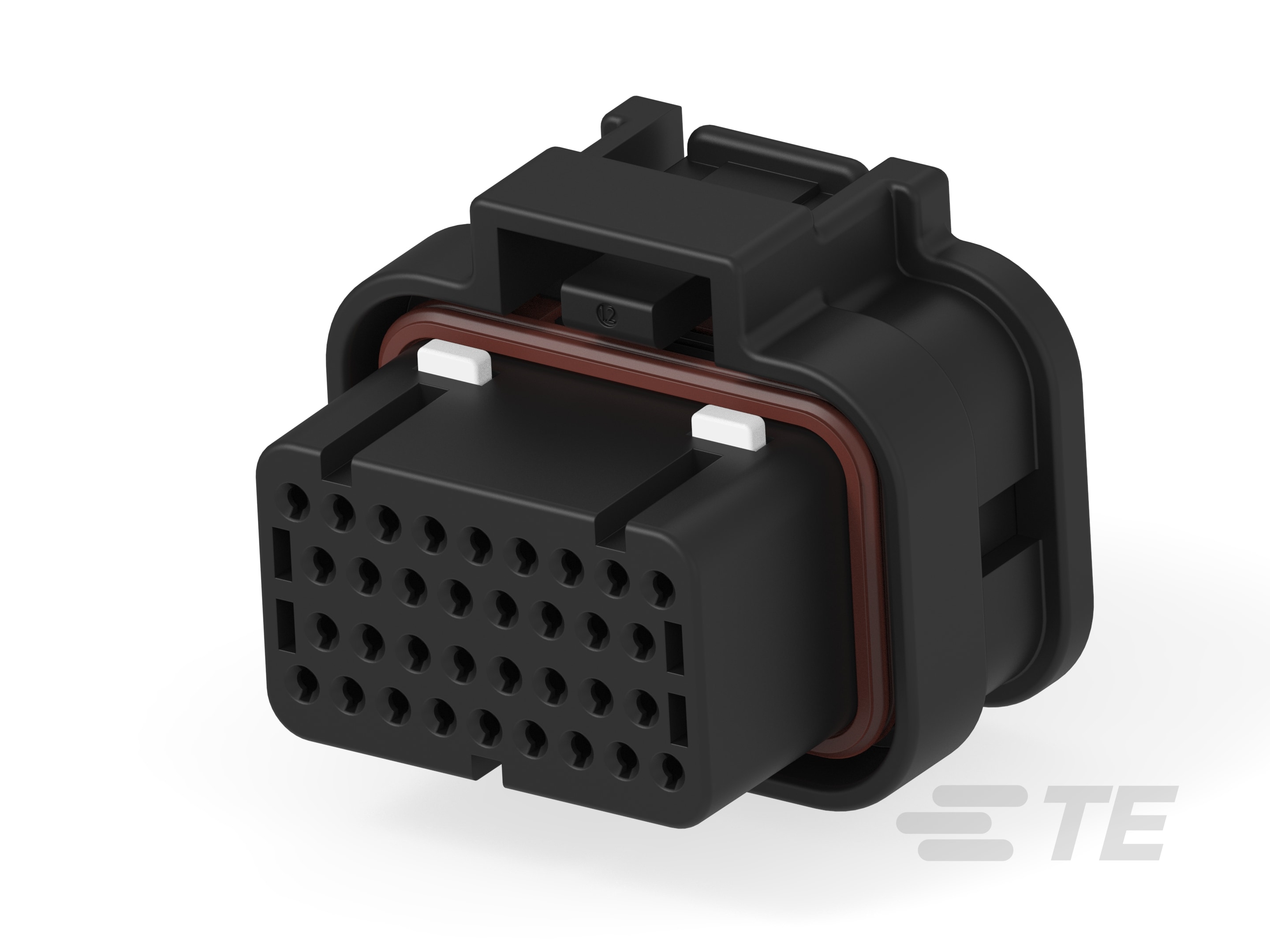

34 Position Housing, Plug, Wire-to-Board, 3 mm [.118 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging), SUPERSEAL 1.0mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2468445-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 34 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
