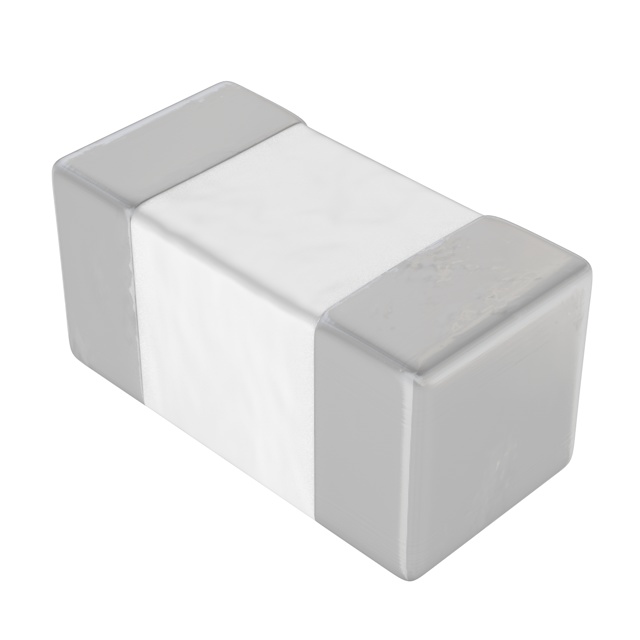

QLCD250Q430J1GV001T
ActiveJohanson Technology Inc.
CAP CER 43PF 25V C0G/NP0 0201
QLCD250Q430J1GV001T
ActiveJohanson Technology Inc.
CAP CER 43PF 25V C0G/NP0 0201
Description
General part information
QLCD250Q430J1GV001T
43 pF ±5% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | QLCD250Q430J1GV001T |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 43 pF |
| Features | High Q, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.013 in |
| Tolerance | 5 % |
| Voltage - Rated | 25 VAC |
