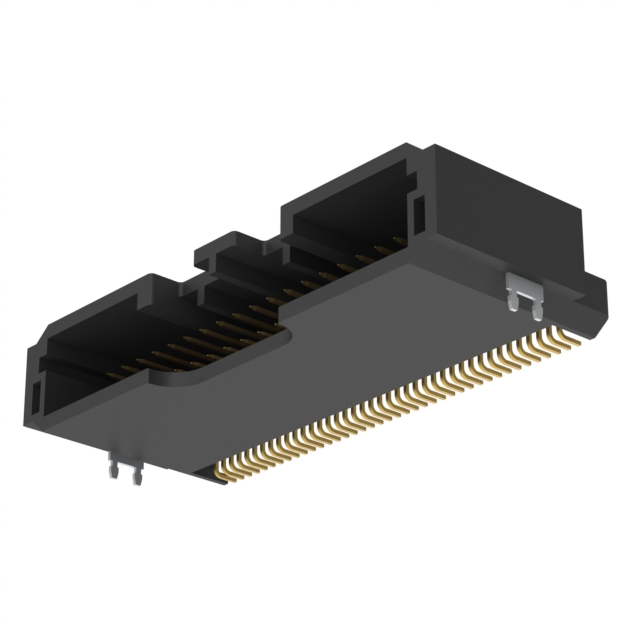

IMSA-13065B-2-40Y900

Active

IRISO USA Inc.

HEADER SMT RA 40POS KEY-A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13065B-2-40Y900

Active

IRISO USA Inc.

HEADER SMT RA 40POS KEY-A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMSA-13065B-2-40Y900

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

IMSA-13065B Series

Part	Features	Insulation Material	Contact Material	Style	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Type	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Rows	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Shrouding	Number of Positions
IRISO USA Inc. IMSA-13065B-2-12J-TR	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	12	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-28Y902	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	28	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-16Y901	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm		Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall	16
IRISO USA Inc. IMSA-13065B-2-24Y902	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	24	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-32Y902	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm		Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-12Y901	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	12	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-20J-TR	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	20	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-16Y902	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm		Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall	16
IRISO USA Inc. IMSA-13065B-2-08Y902	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	8	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-40J-TR	Solder Retention	Polyphenylene Sulfide (PPS)	Copper Alloy	Board to Board Cable	Black	0.098 in	2.5 mm	40	Male Pin	Header	0.079 in	2 mm	Tin	All	Surface Mount Right Angle	Solder	1 µm	39.4 µin	1 çm	39.4 çin	Locking Ramp	2	Square	0.366 in	9.3 mm	UL94 V-0	Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.77
		10	$ 2.11
	Digi-Reel®	1	$ 2.77
		10	$ 2.11
	Tape & Reel (TR)	600	$ 1.50

Description

General part information

IMSA-13065B Series

Connector Header Surface Mount, Right Angle 40 position 0.079" (2.00mm)
