RG142-QM-SM(QTY:90m)
ActiveMcGill Microwave Systems
RG142 ASSY QMA MALE-SMA MALE 90M
RG142-QM-SM(QTY:90m)
ActiveMcGill Microwave Systems
RG142 ASSY QMA MALE-SMA MALE 90M
Description
General part information
RG142-QM-SM(QTY:90m)

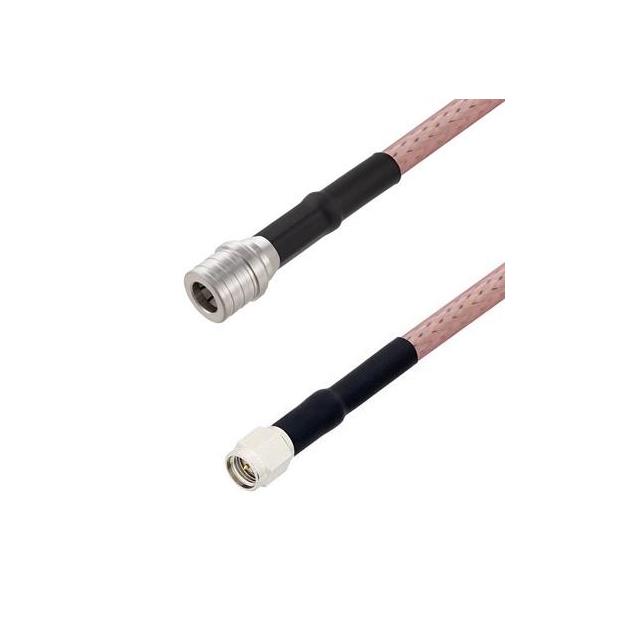

Cable Assembly Coaxial QMA to SMA RG-142 3543.3" (90.0m) 295.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG142-QM-SM(QTY:90m) |
|---|---|
| 1st Connector | QMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Length | 3543.3 in |
| Length (ft) | 295.3 ft |
| Style | QMA, SMA |
