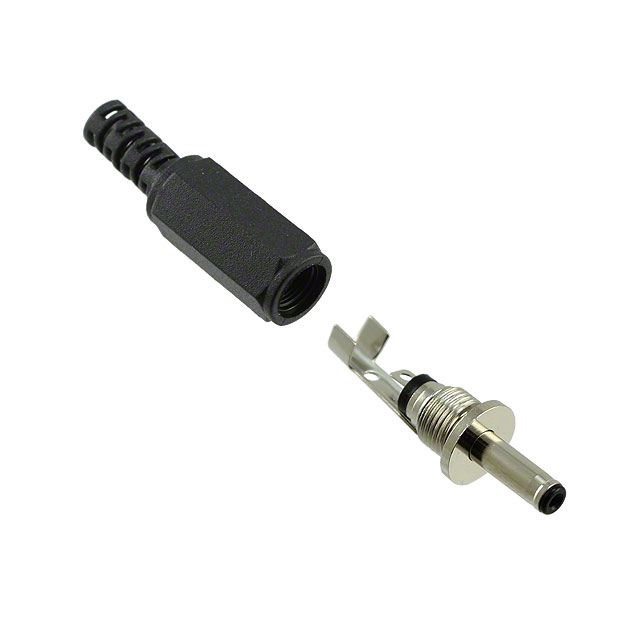

PP-019
ActiveSame Sky (Formerly CUI Devices)
CONN POWER PLUG 1.1MM ID SOLDER
PP-019
ActiveSame Sky (Formerly CUI Devices)
CONN POWER PLUG 1.1MM ID SOLDER
Description
General part information
PP-019
Power Barrel Connector Plug 1.10mm ID (0.043") Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-019 |
|---|---|
| Actual Diameter (ID) | 0.043 in |
| Actual Diameter (OD) | 0.118 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 2 A |
| Features | Strain Relief |
| Gender | Female |
| Housing Material | PVC, Polyvinyl Chloride |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 1.1 mm |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.354 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VAC |
